ATEX Portable Lighting

PORTABLE ATEX RECHARGEABLE FLOODLIGHT ULTRA2

Incredible operating time of 8 hours at 3200 lumen! Therefore the best solution for inspection, maintenance or construction work. Also, ready to use in case of emergency.

No need for power-supply, cables or a transformer. Quick access to hard-to-reach places in an ATEX environment.
Designed to be used during cleaning, maintenance or inspection.



Specifications

Watts 25W
Lamps LED
Lumen 3200 | 5000°K
Durability 8 h.
Charge time 9 h.
Battery Lithium Polymer (LiPo)., 51,2 Ah. Sealed. 4 years guarantee
Dimensions 388 x 319 x 147 mm
Weight 6kg
Zones 1, 2, 21 and 22
Certificate gas Ex II 2G Ex ib IIC T4 Gb
Certificate dust Ex II 2D Ex ib IIIC T135°C Db
Options Tripod
Protective film
Magnets
Scaffolding hook
Support frame

Magnetic Mounting

Scaffolding Hook

KE LED EX 4003 explosion-proof hand lamp

KE LED EX 4003 Symbole Handleuchte

The extremely compact, light and explosion-proof ATEX hand lamp is ideal for illuminating areas that are difficult to access and where inspection and service are necessary. At the same time it fulfills the safety requirements with regard to explosion protection. Three integrated POWER LED modules ensure optimal lighting. Thanks to the integrated diffuser film, a glare-free and pleasant work is guaranteed. Ideal for use as an inspection lamp.

KE LED EX 4006 explosion-proof hand lamp

KE LED EX 4006 Symbole Handleuchte

The proven explosion-proof standard hand lamp for service and inspection work in areas where safety with regard to explosion protection is required. Optimal and bright illumination of the working areas due to six POWER LED modules. Thanks to the integrated diffuser film, a glare-free and pleasant work is guaranteed. Ideal for use as an inspection lamp.

KE LED EX 5024 explosion-proof hand lamp

KE LED EX 5024 Symbole Handleuchte

The new, luminous intensive ATEX LED hand lamp KE-LED-EX 5024 supports you with extremely bright and glare-free light when working in explosion-protected areas. The 24 POWER LED modules combined with an integrated diffuser film ensure this. The slim design, the light weight (approx. 1.5 kg) and the comfortable neoprene handle make it possible to use the light as a classic hand lamp and inspection lamp.

KE EX 4008 explosion-proof hand lamp

KE EX 4008 Symbole Handleuchte

The classic, ex-protected fluorescent lamp. Ideal for maintenance and inspection in areas where safety is required with regard to explosion protection.

KE EX 6818 explosion-proof working lamp

KE EX 6818 Symbole mobile Arbeitsleuchte

Within the KE-EX 68xx luminaire series you get robust, explosion proof luminaires with different length and power. The model KE-EX 6818 is equipped with a 18 watt compact fluorescent lamp. In addition, the luminaires from this series are optionally available as omnidirectional version (360 ° illumination) as well as through-wired lighting solution. (on request). Extensive accessories complete the diverse range of applications.

KE EX 6824 explosion-proof working lamp

KE EX 6824 Symbole mobile Arbeitsleuchte

Within the KE-EX 68xx luminaire series you get robust, explosion proof luminaires with different length and power. The model KE-EX 6824 is equipped with a 24 watt compact fluorescent lamp. In addition, the luminaires from this series are optionally available as omnidirectional version (360 ° illumination) as well as through-wired lighting solution. (on request). Extensive accessories complete the diverse range of applications.

KE EX 6836 explosion-proof working lamp

KE EX 6836 Symbole mobile Arbeitsleuchte

Within the KE-EX 68xx luminaire series you get robust, explosion proof luminaires with different length and power. The model KE-EX 6836 is equipped with a 36 watt compact fluorescent lamp. In addition, the luminaires from this series are optionally available as omnidirectional version (360 ° illumination) as well as through-wired lighting solution. (on request). Extensive accessories complete the diverse range of applications.

KE EX 6855 explosion-proof working lamp

KE EX 6855 Symbole mobile Arbeitsleuchte

Within the KE-EX 68xx luminaire series you get robust, explosion proof luminaires with different length and power. The model KE-EX 6855 is equipped with a 55 watt compact fluorescent lamp. In addition, the luminaires from this series are optionally available as omnidirectional version (360 ° illumination) as well as through-wired lighting solution. (on request). Extensive accessories complete the diverse range of applications.

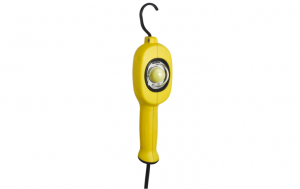

ATEX LED Inspection Leadlamp

  • Models: SP-600EL/HOFR10, SP-600L/HOFR10, SP-600H/HOFR10
  • Gas Zone: 1 and 2
  • Dust Zone: 21 and 22
  • Power: Lead
  • Light: LED



The high power LED ‘fitted for life’ light source produces a forward facing high efficiency output of up to 470 lumens by emitting an exceptional, even, ultra-wide angle light; minimising shadows and enhancing visibility to provide optimum illumination for localised, close proximity work.

Lightweight, compact and ergonomically friendly, the Inspection Leadlamp is designed for handheld use, with an “easy-grip” handle for user comfort. With a flexible 360° swivel hook, the SP-600 can be suspended for hands-free use, and magnet mounting accessories are also available.

The unit is extremely robust and durable with impact resistant anti-static enclosure, IP67 rated, and scratch and chemical resistant polycarbonate hardcoat lens, to withstand the rigours of heavy industrial use. Further protection is possible by fitting a stainless steel cage guard for enhanced mechanical protection, or a protective sleeve to minimise residue build-up in very dirty or paint-filled atmospheres; both fully certified and ideal for use in the most demanding conditions.

The Leadlamp is available in three voltage input ranges: high 90-264VAC for general applications, and low 18-54VAC/20-54VDC and extra low 9-16VAC/DC for use in confined space applications, such as metal tanks.

Download Product Information Sheet.

Features & Benefits

  • Ideal for handheld inspection and work activities in a hazardous area
  • ATEX and IECEx approved for Zone 1 and 21 explosive gas and dust atmospheres
  • 470 lumen high power ‘fitted for life’ LED light source
  • High quality, even, ultra-wide angle LED light, reduces shadows and enhances visibility
  • Large diffused light source minimises eye discomfort when viewed directly
  • Lightweight and compact for handheld use
  • Flexible integrated hook for suspension in the work area
  • Robust and highly durable enclosure to withstand heavy industrial use
  • Wide voltage range models
  • Fitted with 10m HOFR cable as standard
  • IP67 rated for use in the harshest environments
  • Group I mining approval
  • Mounting and protection accessories available
Product Description
SP-600EL/HOFR10 Extra Low Voltage – 9-16VAC/DC

Gas Zone: 1 and 2Dust Zone: 21 and 22

SP-600L/HOFR10 Low Voltage – 18-54VAC / 20-54VDC

Gas Zone: 1 and 2Dust Zone: 21 and 22

SP-600H/HOFR10

High Voltage – 90-264VAC

Gas Zone: 1 and 2Dust Zone: 21 and 22

Portable Hazardous Area Lighting & Flashlights

The CorDEX Intrinsically safe lighting range includes the lightweight and rugged hand-portable LED Worklight. Power, Longevity and Flexibility at your fingertips with the GENESIS, intrinsically safe lighting solutions from CorDEX.



Genesis Worklight

ATEX and IECEx certified, GENESIS Intrinsically Safe lighting products are rigorously tested to ensure maximum reliability with power, longevity and flexibility at your fingertips.

The CorDEX Intrinsically safe, lightweight and rugged hand portable LED Worklight:CorDEX_Products_EXISLantern_3QuarterFront_0915-460x390

  • Hand-portable LED Lantern
  • Lightweight and rugged
  • IP54 Industrial Protection
  • Five super-bright LEDs
  • Powered by interchangeable EXIS™ battery
  • Zone 1 Hot Swappable technology
  • Intrinsically Safe

EXIS™ – GENESIS Zone 1 Hot Swap Battery technology

Using the interchangeable, EXIS™ smart battery pack, GENESIS can remain in the hazardous location as long as you require, providing 400 lumens of light for a virtually indefinite period. There is no need to return to the safe area to charge a battery or replace for a new one, with GENESIS Zone 1 Hot Swap technology, you can replace the battery right there, in the hazardous area, as soon as you need to saving you time and money whilst keeping you safe. ATEX and IECEx certified, GENESIS lighting products are rigorously tested to ensure maximum reliability.

The smartEXIS™ power packs have on-board energy level indication, along with a Bluetooth enabled battery diagnostic station providing you with data relating to your battery health, charge state and much more all via a dedicated PC application.

Specifications

Certification: ATEX and IECEx certified
Lumens: 400
LEDS: Five Super Bright LEDS
Power: Powered by EXIS Zone One Hot Swappable Battery Pack







Genesis Lantern

ATEX and IECEx certified, GENESIS Intrinsically Safe lighting products are rigorously tested to ensure maximum reliability with power, longevity and flexibility at your fingertips.CorDEX_Products_EXISLamp_3QuarterFront_0915-460x390

The CorDEX Intrinsically safe, lightweight and rugged hand portable LED Lantern:

  • Hand portable LED Lantern
  • Lightweight and rugged
  • IP54 Industrial Protection
  • Five super-bright LEDs
  • Powered by interchangeable EXIS™ battery
  • Zone 1 Hot Swappable technology
  • Intrinsically Safe

EXIS™ – GENESIS Zone 1 Hot Swap Battery technology

Using the interchangeable, EXIS™ smart battery pack, GENESIS can remain in the hazardous location as long as you require, providing 400 lumens of light for a virtually indefinite period. There is no need to return to the safe area to charge a battery or replace for a new one, with GENESIS Zone 1 Hot Swap technology, you can replace the battery right there, in the hazardous area, as soon as you need to saving you time and money whilst keeping you safe. ATEX and IECEx certified, GENESIS lighting products are rigorously tested to ensure maximum reliability.

The smartEXIS™ powerpacks have on-board energy level indication, along with a Bluetooth enabled battery diagnostic station providing you with data relating to your battery health, charge state and much more all via a dedicated PC application.

Specification

Certification: ATEX and IECEx certified
Lumens: 400
LEDs: Five Super Bright LEDS
IP Rating: IP54
Power: Powered by EXIS Zone One Hot Swappable Battery Pack
