D6000 Series

High Performance Signal Conditioners

D6000 Series

• High signal transfer accuracy and repeatability.
• Advanced circuitry provides very low heat dissipation, ensuring modules run cool despite their high density and functionality.
• SMD manufacturing for long, reliable life.
Complete absence of electrolytic capacitors ensures minimum 20 years lifetime.



    Wide functionality

    Wide range of digital and analog I/O.
    • Three port galvanic isolation to eliminate noise, ground loop problems.
    • Line fault alarm detects open or short circuit of field cables.
    • Optional power bus DIN-Rail connector.
    • Standard Termination Board with SUB-D connector and customized Boards compatible with major I/O cards.
    • EMC Compatibility to EN61000-6-2, EN61000-6-4, EN61326-1, EN61326-3-1 for safety system.

    General features

    Modules suitable for applications up to SIL 3 level according to IEC 61508, IEC 61511.
    • Independent power supply circuit for each channel.
    • Dual channel units are equivalent to two single units because of the absence of common circuitry.
    • Single channel versions available when required, to provide single loop integrity .
    • Configuration components are easily accessed by removing the side cover.
    • DIP switch configurability for easy field setup.
    • LED indication for power, signal status and line fault conditions.
    • Modules accept DC power supply over a wide range for 24 Vdc (20-30 Vdc) applications.
    • Wide operating temperature range: -40 to +60/+70 °C.

    High packing density

    • 35 mm (Top Hat) DIN-Rail.
    • Ultra slim 2 channels 12 mm wide DIN-Rail or 8 channels into 22 mm
    • Termination Board mounting modules.
    • Power and fault on bus connectors.
    • 3/6 mm per channel means more than 50% space reduction

      Models Available

      D6011S  –  1 channel Non-IS SIL 3 Repeater Power Supply Hart     More details

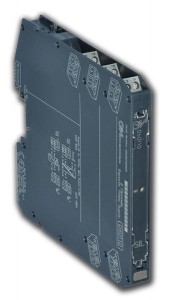

      D6011D  –  2 channel Non-IS SIL 3 Repeater Power Supply Hart    More details

      D6014S  –   1 channel Non-IS SIL 3 Repeater Power Supply Hart    More details

      D6014D  –  2 channel Non-IS SIL 3 Repeater Power Supply Hart    More details

      D6020S  –  1 channel Non-IS SIL 3 Powered Isolating Driver Hart    More details

      D6020D  –  2 channel Non-IS SIL 3 Powered Isolating Driver Hart    More details

      D6030S  –  1 channel Non-IS SIL 3 Switch/Proximity repeater, Relay Output   More Details

      D6030D    2 channel Non-IS SIL 3 Switch/Proximity repeater, Relay Output   More Details

      D6031S    1 channel Non-IS SIL 3 Switch/Proximity repeater,  Transistor Output  More Details

      D6031D    2 channel Non-IS SIL 3 Switch/Proximity repeater, Transistor Output   More Details

      D6212Q  –  4 channel Non-IS SIL 2 Repeater Power supply More details

      D6231E   –  8 channel Non-IS SIL 2 Switch/Proximity Detector Repeater,  O.C. Output   More details

      D6254S   –  1 channel Non-IS SIL 2 Signal Converter and Trip Amplifier  More details

      D6263S  –   1 channel Non-IS SIL 2 Strain gauge repeater  More details

      D6264S  –    1 channel Non-IS SIL 2 Strain gauge convertor Analogue and Modbus O/P   More details

      D6072S    1 channel Non-IS SIL 2 Temperature Signal Converter, Multifunction   More details

      D6072D  –  1 channel Non-IS SIL 2 Temperature Signal Converter, Multifunction   More details

      D6073S  –  1 channel Non-IS SIL 2 Temperature Signal Converter, Multifunction, Trip Amplifiers   More details
