Power Supplies


PSD1220

SIL3 Power Supply PSD1220, 24VDC, 20 A, ZONE 2

Description

The Power Supply type PSD1220 is an anodised aluminium unit.
The Power Supply provides 24Vdc, 20 A output. PSD1220 unit can be paralleled, with load sharing circuits, which distribute current load equally to each power supply to increase reliability and reduce internal power dissipation.

Features

• SIL 3 for NE Load according IEC 61508:2010, with single PSD1220 module or more PSD1220 modules in redundant configuration (see ISM0371 for more information).
• SIL 2 / SIL 3 for ND Load according IEC 61508:2010, with two or more PSD1220 modules in redundant configuration (see ISM0371 for more information).
• Systematic capability SIL 3.
• Power factor correction.
• Installation in Zone 2.
• EMC Compatibility to EN61000-6-2, EN61000-6-4.
• ATEX, IECEx Certifications (pending).
• TÜV Certification.
• TÜV Functional Safety Certification.
• Type Approval Certificate DNV for marine applications (pending).
• Highly regulated output of 24 Vdc, 20 A.
• Under and over voltage alarm monitoring.
• 3 over voltage redundant protections.
• Redundant parallel connections with load sharing.
• Reduces Power dissipation (in parallel/redundant configuration) by replacing a Schottky
diode with Mosfet Active Ideal Diode.
• Better than 93% efficiency @230 Vac input, full load and full output voltage range.
• High load fuse breaking capability without interrupting operations.
• Conformal coated on all boards for durability and protection.

PSX1200

SIL2/3 Zone 2 Power Supply Series

G.M. International new PSX1200 Series power supplies have been designed to provide the greatest levels of availability and safety for high integrity and critical applications.

PSW1250_series

Safety

  • Three independent over voltage protections: 1 voltage limiting loop at 30 Vdc and 1+1 crowbars at 31 Vdc.
  • Under and over voltage alarm monitoring.
  • High load fuses breaking capacity to ensure that, in case one load attached to the power supply fails, others are not affected.
  • Units are SIL2/SIL3 according to IEC61508:2010 Ed. 2 (pending approval).
  • Designed for installation in Zone 2 / Div. 2 hazardous locations.
  • ATEX, IECEx Certifications (pending).

Performance

  • Up to 1200 W for a single unit.
  • Up to 3600 W (fully redundant) for 19″ rack system.
  • Better than 87% efficiency with 0.98 Power Factor Correction.
  • Fast output dynamic response.

Availability

  • Fully redundant options available with load sharing.
  • Two universal AC input lines.

Features

  • Wall, DIN-Rail, 7″ or 19″ rack mounting versions.
  • Modular systems for wide range of applications.
  • Active Ideal Diode circuitry for lower internal power dissipation and greater efficiency.

 Models in Series





 PSS1250_series (1)













Din Rail Power Supplies PSD100*

PSD1000















Models in Series

  • PSD1000         Universal AC input 24V-500mA Switching Power Supply       PSD1000 Data Sheet
  • PSD1001          Quad Channel 15V-20mA Intrinsically Safe Power Supply, SIL 3    PSD1001 Data Sheet
  • PSD1001-C     Single Channel 10V-150mA Intrinsically Safe Power Supply, SIL 3   PSD1001C Data Sheet



PCB Mounting Power Supply

PSU1003











  • PSU1003  –  PCB Mount 5V-160mA Intrinsically Safe Power Supply   PSU1003 Data Sheet

The PSU1003 is an intrinsically safe potted module approved as a sealed component in a 55 x 30 x 15 mm plastic enclosure with soldering pins for PCB mounting. The unit can be installed in Hazardous Location Div.1 (Zone 0), Gas Group C-D-E-F-G (IIB-IIA), T4. Powered from the PSD1001C supply module, it provides a stabilized 5V-160mA supply for field instrumentation with 500V input/output isolation, short circuit and reverse input polarity protection, remote sensing and regulation.

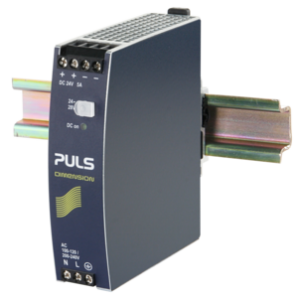

Puls 24VDC 5A Power Supply



PG-PS-CS-24/5  (CS5-241)

DIN-Rail Power Supplies for 1-phase Systems
24V, 5A

  • 115 / 230V Auto-select input
  • Efficiency up to 90,2%
  • Negligibly low input inrush current
  • 20% Power reserves can be used continuously up to +45°C
  • Full output power between -25 and +60°C
Output 24-28Vdc
5-4.3A
120W
Input AC 100-120/200-240V  (± 10%)
Size (WxHxD) 32 x 124 x 117mm
Weight 500g

Data Sheet
