Lamps & Indicators
BA390 Series – LED Clusters
- Intrinsically safe to FM, ATEX, IECEx
- Available in five bright colours
- Reliable LED illumination
- 10+ year continuous life expectancy
- Low 20mA current consumption
- Super low 4mA “S” versions for fieldbus
- IP65 environmental rating
- Panel mounting
- Compatible with a wide range of barriers
- No explosion-proof housing required
A bright and uniform light output is insured by the coloured diffuser and current regulator incorporated into these lamps.
There’s no need to debate the issue of whether LED’s meet the definition of “simple apparatus” because these LED cluster lamps have Factory Mutual approval plus ATEX and IECEx certification as intrinsically safe devices. Specify Model 390S for fieldbus applications.
Ask us about economical multi-channel Intrinsically Safe Isolator D1041Q that make for a simple, cost-effective installation.
K30L Hazardous Area Indicator
Compact, 30 mm diameter, illuminated dome provides easy-to-see operator guidance in hazardous areas.
- Available in intrinsically safe (Ex ia), encapsulated (Ex mb/Ex ta), and non-sparking (Ex nA/Ex tc) enclosure models
- Extensive approvals for use in every classified zone or area, including worldwide IECEx approval for global access
- Five colours available, display up to three colours in one device
- Appears grey when off to eliminate false indication from ambient light
- Long lasting LED technology for years of maintenance-free operation
Product Specifications
| Supply Voltage and Current | Encapsulated & Non sparking: 10 to 30V dc (25 mA max.) Intrinsically Safe:See Data sheet |
|---|---|
| Indicators | Entire translucent diffuser or dome provides indication. LEDs are independently selected: Green,Red, Yellow, Blue, or White; 1, 2, or 3 colours, depending on model. For other colours/combinations, contact Banner Engineering for availability. |
| Construction | Base: polycarbonate Translucent dome:polycarbonate |
| Connections |
2 m (6.5 ft) PVC integral cable, or 150 mm (5.9 in) 4-pin Euro PVC Pigtail QD |
| Environmental Rating | IP67/IP69K |
| Operating Conditions | −40 °C to +50 °C (−40 °F to +122 °F) or −40 °C to +40 °C (−40 °F to +104 °F), depending on model |
K50L Hazardous Area Indicator
Available in our most popular housing model, the K50L hazardous areas indicators are available in intrinsically safe, encapsulated and non-sparking models.
- Available in intrinsically safe (Ex ia), encapsulated (Ex mn/Ex ta), and non-sparking (Ex nA/Ex tc) enclosure models
- Extensive approvals for use in every classified zone or area, including worldwide IECEx approval for quicker access outside of North America and Europe
- Five colours available, display up to three colours in one device
- Appears grey when off to eliminate false indication from ambient light
- Long lasting LED technology for years of maintenance-free operation
Product Specifications
| Supply Voltage and Current | Encapsulated & Non sparking: 10 to 30V dc (25 mA max.) Intrinsically Safe:See Data sheet |
|---|---|
| Indicators | Entire translucent diffuser or dome provides indication. LEDs are independently selected: Green,Red, Yellow, Blue, or White; 1, 2, or 3 colours, depending on model. For other colours/combinations, contact Banner Engineering for availability. |
| Construction | Base: polycarbonate Translucent dome:polycarbonate |
| Connections |
4-pin Euro integral QD, 2 m (6.5 ft) PVC integral cable, or 150 mm (5.9 in) 4-pin Euro PVC Pigtail QD |
| Environmental Rating | IP67/IP69K |
| Operating Conditions | −40 °C to +50 °C (−40 °F to +122 °F) or −40 °C to +40 °C (−40 °F to +104 °F), depending on model |
LR4 Signal Tower – Zone 2/22
The LR4-EX units are created by converting a standard LR4 stack tower into explosion proof signal towers. The LR range features vertical and horizontal cut lenses and a double-reflection system that enhances the light diffusion and creates a more even 360° output. The lenses and main body of the towers are made of polycarbonate materials and with improved silicon O-Rings resulting in a more sturdy unit that is more resistant to harsh environments.
- Rated Voltage: 24V DC
- Tiers: 1 – 5
- Size: 40mm Diameter
- Explosion-safe for gas and dust
- Suitable for Zone 2 and Zone 22
- CE compliance in accordance to ATEX
- A Uniform 360° Light-Emitting Design
- Unique Method of Fully Enclosed Sound Module
- Available with “flashing/non flashing” and four audible buzzer alarm sounds
- Ingress protection of IP65
- Wall-mount

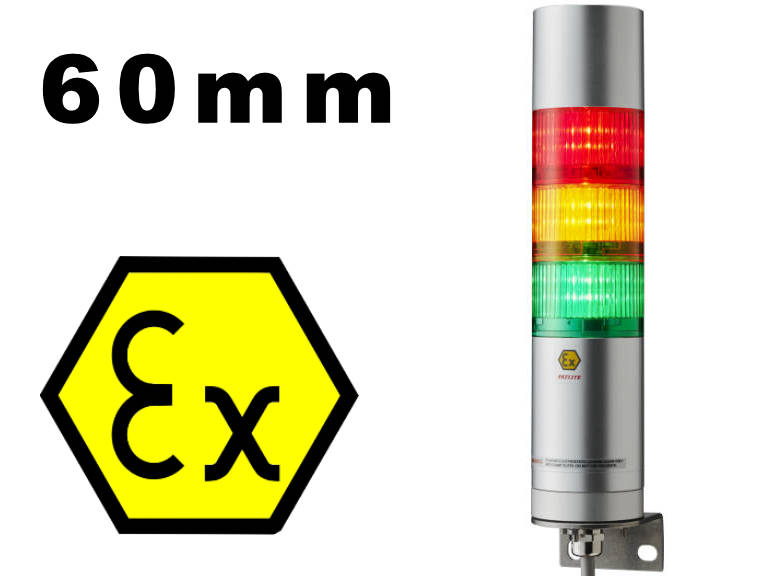

LR6 Signal Tower – Zone 2/22
The LR6-EX units are created by converting a standard LR6 stack tower into explosion proof signal towers. The LR range features vertical and horizontal cut lenses and a double-reflection system that enhances the light diffusion and creates a more even 360° output. The lenses and main body of the towers are made of polycarbonate materials and with improved silicon O-Rings resulting in a more sturdy unit that is more resistant to harsh environments.
- Rated Voltage: 24V DC
- Tiers: 1 – 5
- Size: 60 mm Diameter
- Explosion-safe for gas and dust
- Suitable for Zone 2 and Zone 22
- CE compliance in accordance to ATEX
- A Uniform 360° Light-Emitting Design
- Unique Method of Fully Enclosed Sound Module
- Available with “flashing/non flashing” and four audible buzzer alarm sounds
- Ingress protection of IP65
- Wall-mount
