Intrinsically Safe Sounders & Beacons

Exloc Instruments are able to offer a high quality competitive range of Intrinsically Safe Sounders & Beacons. The range contains ATEX approved sounders, beacons and combination units in a variety of colours and supply voltages.

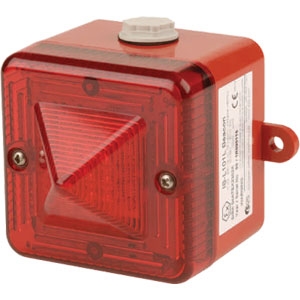

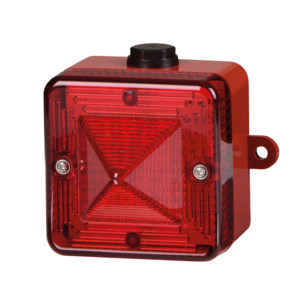

LED Beacon  IS-L101L

The IS-L101L unit is an intrinsically safe field mounting beacon which

1-11-020_IS-L101L-R-R

provides a bright flashing warning signal.

The unit can be used independently or combined with an IS-A105N 49 alarm sounder. Combination units can utilise a common zener barrier or galvanic isolator and may be coupled together or mounted seperately. With the IS-A105N the alarm accept function can be utilised. By closing a pair of external contacts (i.e push switch) the operator may silence the alarm for set periods between 5 seconds and 2 hours. If after the preset time the alarm condition still exists the sounder will activate again.

Specification

Light source: Array of 6 high intensity L.E.D’s.
L.E.D. colours: Red, Amber, Blue & Green
Standalone mode: 2Hz (2 double flashes per second)
Effective intensity cd: 48cd* – measured ref. to I.E.S.
With IS-A105N: On : 1 Hz (1 double flash
per second
Silenced: 2 Hz (2 double flashes
per second)
(alarm accepted)
Voltage: 16-28vdc via Zener barrier or
galvanic isolator
Current: Stand alone: 25mA typical
With IS-A105N: 35mA typical
Ingress protection: IP66
Rating: Continuous
Housing material: UL94V0 & 5VA FR ABS & PC
Housing colour: RAL3000 Red
Fixings: Stainless Steel
Cable entries: 1 x M20 clearance gland knockout.
Terminals: 0.5 to 2.5mm²
Operating temp: -40° to +60°C [-40 to +140°F]
Storage temp: -40° to +70°C [-40 to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 0.40Kg/0.88Ibs

1-11-010_IS-mB1-R-R

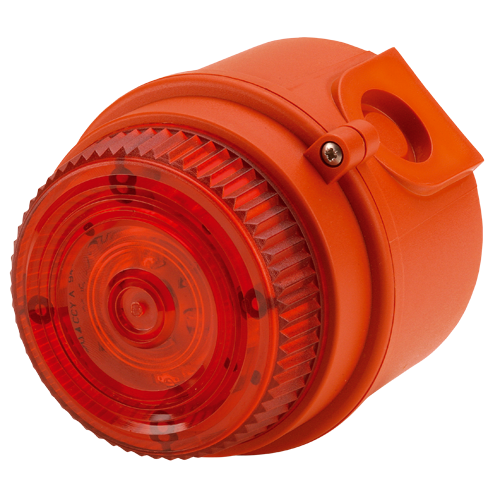

IS-minialite IS-mB1

The IS-mB1 is a compact beacon with an array of six high output L.E.D’s. Approvals include ATEX, IECEx and GOST-R for Zone 0 applications and FM approval for Class I Division 1 and Class I Zone 0 applications.

Specification

Light source: Array of 6 high intensity L.E.D’s.
L.E.D. colours: Red, Amber, Blue, Green & Clear
Flash modes: Double flash at 2Hz and 1Hz
Effective intensity cd: 23cd* – measured ref. to I.E.S.
Voltage: 16-28vdc via Zener barrier or
galvanic isolator
Current: 25mA typical when powered
from 24v supply via 28v 300 Ohm
Zener barrier
Ingress protection: IP65
Rating: Continuous
Housing material: UL94V0 & 5VA FR ABS & PC
Housing colour: RAL3000 Red
Fixings: Stainless Steel
Cable entries: 2 x M20 clearance gland knockouts.
Custom configurations also available.
Terminals: 0.5 to 2.5mm²
Operating temp: -40° to +60°C [-40 to +140°F]
Storage temp: -40° to +70°C [-40 to +158°F]
Relative humidity: 90% at 20°C [68°F]



Intrinsically Safe Audible

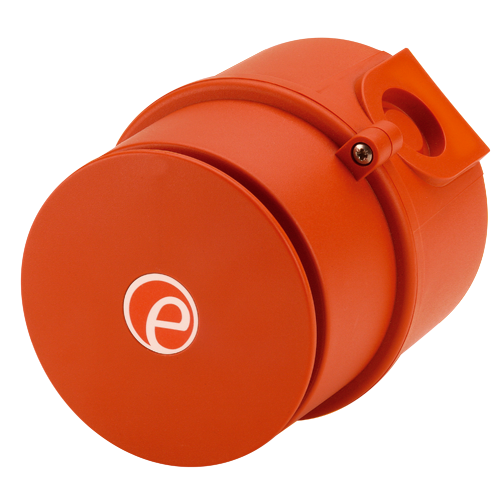

IS-minialarm IS-mA1

1-12-010_IS-mA1-R

The IS-mA1 is a compact, 100dB(A) alarm sounder. Approvals include ATEX, IECEx and GOST-R for Zone 0 applications and FM approval for Class I Division 1 and Class I Zone 0 applications.

Specification

Nominal output: 100dB(A) @ 1m +/- 3dB – Tone 2*[91dB(A) @ 10ft/3m]
No. of tones: 49 (UKOOA/PFEER compliant)
No. of stages: 3
Volume control: Max. 100dB(A); Min. 90dB(A) – Tone 2
Effective range: 40m/131ft @ 1KHz
Voltage: 16-28vdc via Zener barrier or galvanic isolator
Current: 25mA typical when powered from
24v supply via 28v 300 Ohm
Zener barrier
Ingress protection: IP65
Rating: Continuous
Housing material: UL94V0 & 5VA FR ABS
Housing colour: RAL3000 Red
Fixings: Stainless Steel
Cable entries: 2 x M20 clearance gland knockouts.
Custom configurations also available.
Terminals: 0.5 to 2.5mm²
Operating temp: -40° to +60°C [-40 to +140°F]
Storage temp: -40° to +70°C [-40 to +158°F]
Relative humidity: 90% at 20°C [68°F]

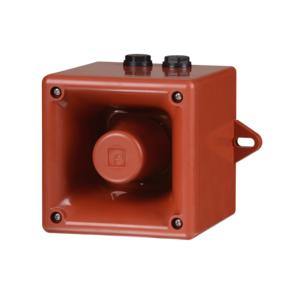

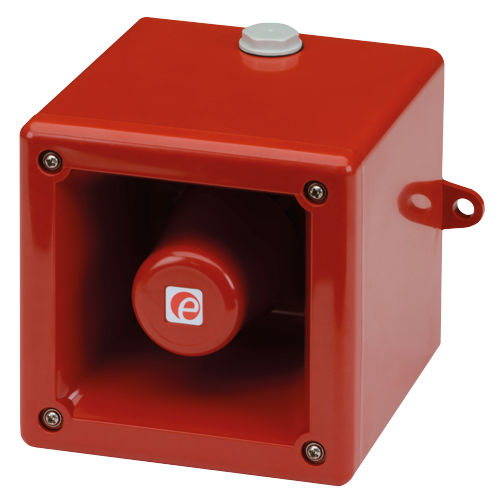

Alarm Sounder IS-A105N

1-12-020_IS-A105N-RThe IS-A105N is a high output, 105dB(A) alarm sounder. Approvals include ATEX, IECEx and GOST-R for Zone 0 applications and FM approval for Class I Division 1 and Class I Zone 0 applications.

Specification

Nominal output: 105dB(A) @ 1m +/- 3dB – Tone 2*[96dB(A) @ 10ft/3m]
No. of tones: 49 (UKOOA/PFEER compliant)
No. of stages: 3
Volume control: Max. 105dB(A); Min. 96dB(A) – Tone 2
Effective range: 60m/197ft @ 1KHz
Voltage: 16-28vdc via Zener barrier or galvanic isolator
Current: 25mA typical when powered from 24v supply via 28v 300 Ohm
Zener barrier
Ingress protection: IP66
Rating: Continuous
Housing material: UL94V0 & 5VA FR ABS
Housing colour: RAL3000 Red, RAL7038 Grey and White
Fixings: Stainless Steel
Cable entries: 2 x M20 clearance gland knockouts.
Custom configurations also available.
Terminals: 0.5 to 2.5mm²
Operating temp: -40° to +60°C [-40 to +140°F]
Storage temp: -40° to +70°C [-40 to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight : 0.75kg/1.65Ibs

Alarm Sounder IS-D105

1-12-030_IS-D105-RThe IS-D105 unit is an intrinsically safe field mounting alarm horn with ATEX & IECEx approval which provides a loud audible signal.

There is a choice of 49 alarm tones with 2 remotely selectable alarm stages. The enclosure is marine grade aluminium with a phosphate and powder coat finish for durability in the harshest of environments.

Specification

Nominal output: 105dB(A) @ 1m +/- 3dB – Tone 2*[96dB(A) @ 10ft/3m]
No. of tones: 49 (UKOOA/PFEER compliant)
No. of stages: 3
Volume control: Max. 105dB(A);
Min. 96dB(A) – Tone 2
Effective range: 60m/197ft @ 1KHz
Voltage: 16-28vdc via Zener barrier or galvanic isolator
Current: 25mA typical when powered from 24v supply via 28v 300 Ohm Zener barrier
Ingress protection: IP66
Rating: Continuous
Enclosure material: A1-Si12 Marine Grade Aluminium
Housing colour: RAL3000 Red or RAL7038 Grey
Fixings: Stainless Steel
Cable entries: 2 x M20
Terminals: 0.5 to 2.5mm²
Operating temp: -40° to +60°C [-40 to +140°F]
Storage temp: -40° to +70°C [-40 to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 1.60kg/3.52Ibs

Panel Mount Sounder  IS-pA1

1-12-040_IS-pA1-GThe IS-pA1 is a compact, panel mount 90dB(A) intrinsically safe alarm buzzer.

Producing a high frequency continuous tone, the IS-pA1 can be pulsed to produce different sounds. Utilising the supplied threaded lock nut the IS-pA1 mounts into a 28mm hole – ideal for applications in control panels where a fault indication or other process alarm is required.

Specification

Nominal output: 89.6dB(A) @ 1m +/- 3dB [80.6dB(A) @ 10ft/3m]
No. of tones: 1 – continuous tone
Frequency: 2600Hz
Voltage: 16-28vdc via Zener barrier or
galvanic isolator
Current: 12mA typical when powered from 24v
supply Zener barrier
Ingress protection: IP66
Rating: Continuous
Housing material: UL94V0 & 5VA FR ABS
Housing colour: RAL7038 Grey
Mounting: Panel mount – 28.5mm
Terminals: Spade terminals
Operating temp: -40° to +60°C [-40 to +140°F]
Storage temp: -40° to +70°C [-40 to +158°F]
Relative humidity: 90% at 20°C [68°F]





Combination Sounder & Beacons

1-13-010_IS-mC1-R-R

IS-minialert IS-mC1

The IS-mC1 is a compact combined 100dB(A) alarm sounder and L.E.D. beacon – only one Zener barrier or galvanic isolator required to run both sounder & beacon or alternatively the unit can be operated as individual signals.



Specification

Alarm sounder:          Model shown IS-mC1-R
Nominal output: 100dB(A) @ 1m +/- 3dB – Tone 2* [91dB(A) @ 10ft/3m]
No. of tones: 49 (UKOOA/PFEER compliant)
No. of stages: 3
Volume control: Max. 100dB(A); Min. 90dB(A) – Tone 2
Effective range: 40m/131ft @ 1KHz
L.E.D. Beacon:
Light source: Array of 6 high intensity L.E.D’s.
L.E.D. colours: Red, Amber, Blue, Green & Clear
Flash modes: Double flash at 2Hz and 1Hz
Effective intensity cd: 23cd* – measured ref. to I.E.S.
General:
Voltage: 16-28vdc via Zener barrier or galvanic isolator
Combined current: approx: 30mA typical when powered from 24v
supply via 28v 300Ohm Zener barrier.
Ingress protection: IP65
Rating: Continuous
Housing material: UL94V0 & 5VA FR ABS & PC
Housing colour: RAL3000 Red
Fixings: Stainless Steel
Cable entries: 2 x M20 clearance gland knockouts.
Custom configurations also available.
Terminals: 0.5 to 2.5mm²
Operating temp: -40° to +60°C [-40° to +140°F]
Storage temp: -40° to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]

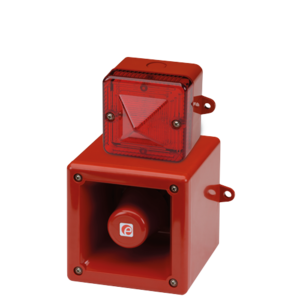

Intrinsically Safe combination L.E.D beacon/light & alarm horn.

IS-A105N/IS-L101L



Specification

Sounder/horn:
Nominal output: 105dB(A) @ 1m +/- 3dB – Tone 2* [96dB(A) @ 10ft/3m]
No. of tones: 49 (UKOOA/PFEER compliant)
No. of stages: 3
Volume control: Max. 105dB(A);
Min. 96dB(A) – Tone 2
Effective range: 60m/197ft @ 1KHz
Beacon/light:
Light source: Array of 6 high intensity L.E.D’s
L.E.D. colours: Red, Amber, Blue & Green
Standalone mode: 2Hz (2 double flashes per second)
Effective intensity cd: 48cd* – measured ref. to I.E.S.
Flash rate: On: 1 Hz (1 double flash per second) Silenced: 2 Hz
(2 double flashes per second) (alarm accepted)
General:
Voltage: 16-28vdc via Zener barrier or galvanic isolator
Current: 25mA typical when powered from 24v
supply via 28v 300 Ohm Zener barrier
Ingress protection: IP66
Rating: Continuous
Housing material: UL94V0 & 5VA FR ABS
Housing colour: RAL3000 Red
Fixings: Stainless Steel
Cable entries: 2 x M20 clearance gland knockouts.
Custom configurations also available.
Terminals: 0.5 to 2.5mm²
Operating temp: -40° to +60°C [-40° to +140°F]
Storage temp: -40° to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 1.15kg/2.53Ibs
*SPL data +/-3dB(A). Measured at optimum voltage.

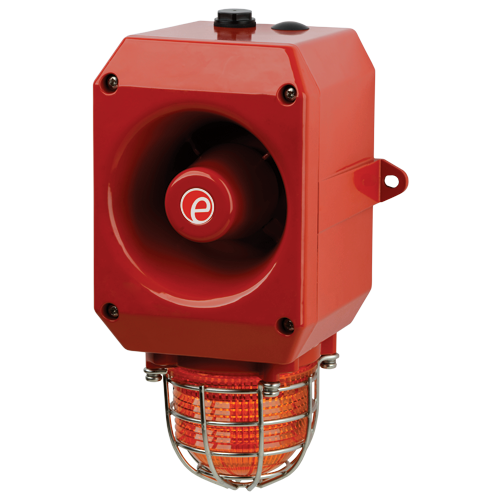

Intrinsically Safe Alarm Sounder & LED beacon

IS-DL105L

1-13-030_IS-DL105L-R-AThe IS-DL105 unit is an intrinsically safe field mounting combined alarm horn with L.E.D. beacon/light which provides a a loud audible and bright flashing visual signal utilising a common zener barrier or galvanic isolator. The alarm horn features an alarm accept function – by closing a pair of external contacts (i.e push switch) the operator may silence the alarm for set periods between 5 seconds and 2 hours. If after the preset time the alarm condition still exists the sounder will activate again.

Specification

Sounder/horn:
Nominal output: 105dB(A) @ 1m +/- 3dB – Tone 2* [96dB(A) @ 10ft/3m]
No. of tones: 49 (UKOOA/PFEER compliant)
No. of stages: 3
Volume control: Max. 105dB(A);
Min. 96dB(A) – Tone 2
Effective range: 60m/197ft @ 1KHz
Beacon/light:
Light source: Array of 6 high intensity L.E.D’s
L.E.D. colours: Red, Amber, Blue & Green
Standalone mode: 2Hz (2 double flashes per second)
Flash rate: On : 1 Hz (1 double flash per second) Silenced: 2 Hz
(2 double flashes per second) (alarm accepted)
General:
Voltage: 16-28vdc via Zener barrier or galvanic isolator
Current: 25mA typical when powered from 24v
supply via 28v 300 Ohm Zener barrier
Ingress protection: IP66
Rating: Continuous
Enclosure material: A1-Si12 Marine Grade Aluminium
Housing colour: RAL3000 Red or RAL7038 Grey
Fixings: Stainless Steel
Cable entries: 2 x M20
Terminals: 0.5 to 2.5mm²
Operating temp: -40° to +60°C [-40° to +140°F]
Storage temp: -40° to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 2.10kg/4.62Ibs

For assistance with choice of a suitable Intrinsically Safe Interface please contact Exloc Instruments
