1301-Z1

A Slim-Line ATEX, IECEx, AEx Zone 1 HMI

The latest addition to HMI Elements’s range of hazardous area HMIs is a slim and lightweight PC, with a super high-bright 19”, 1000 nit multi-touch glove-friendly touchscreen. As you would expect from HMI Elements it comes certified for use in Class I Zone 2 areas with Ethernet and WiFi as standard and a choice of operating voltages.

Features:

  • Glove-friendly Projective Capacitive Touchscreen (PCT) with multi-touch
  • 19″ 1000 nit display
  • Wide -40°C to +60°C (-40°F to +140°F) operating temperature range as standard
  • Thin: 5″ profile. Lightweight: 21.5kg / 47.3lbs
  • VESA, yoke and panel mount options
  • Choice of operating voltages
  • Remote telemetry
  • Built-in diagnostics
  • Clean screen mode
  • Ethernet 10/100/1000 Mbit/s and Wi-Fi as standard
  • Ingress protected to IP66/NEMA 4X
  • Shock in accordance with BS EN60068-2-27:2009
  • Vibration in accordance with BS EN60068-2-6:2008
  • Windows 10 Enterprise LTSB, Windows 7 Professional Operating System
  • Designed for field maintainability



1301-Z1 : i7
PRODUCT TYPE PC Workstation
MODEL NO 1301-Z1
TYPICAL EX CODE II (2) GD Ex e d mb ib [ib] IIC T4 Gb(Gb)
Ex tb IIIB T135°C Dc IP66
Class1, Zone 1, AEx e d mb ib [ib] IIC T4 Gb (Gb)
Zone 21 Ex tb IIIB T135°C Db IP66
DISPLAY SIZE 19″
DISPLAY TYPE Sunlight readable high brightness panel
IR filtering and anti-glare coating.
RESOLUTION SXGA; 1280 x 1024, wide viewing angle,  24 bit colour
PROCESSOR OPTIONS Core i7 6th/7th Generation
MEMORY OPTIONS 16GB DDR / 32GB DDR4
OPERATING SYSTEM Windows 10 Enterprise LTSB, Windows 7 Professional 64 bit
INGRESS PROTECTION IP66 / NEMA4 and NEMA 4X
OPERATING TEMPERATURE -40°C to +60°C
STORAGE TEMP -40°C to +85°C (-40°F to +185°F)
WEIGHT 47.3Ibs / 21.5kg
MAX DIMENSIONS 16.9″ x 16.1″ x 5.9″ / 430mm x 410mm x 150mm
MOUNTING OPTIONS VESA, Yoke, Panel
COMMUNICATION OPTIONS Wi-Fi connectivity
Bluetooth connectivity
Fibre optic connectivity
Remote interrogation of on-board diagnostics
Built-in Camera1301-Z1 Data Sheet
1301-Z1 Data Sheet

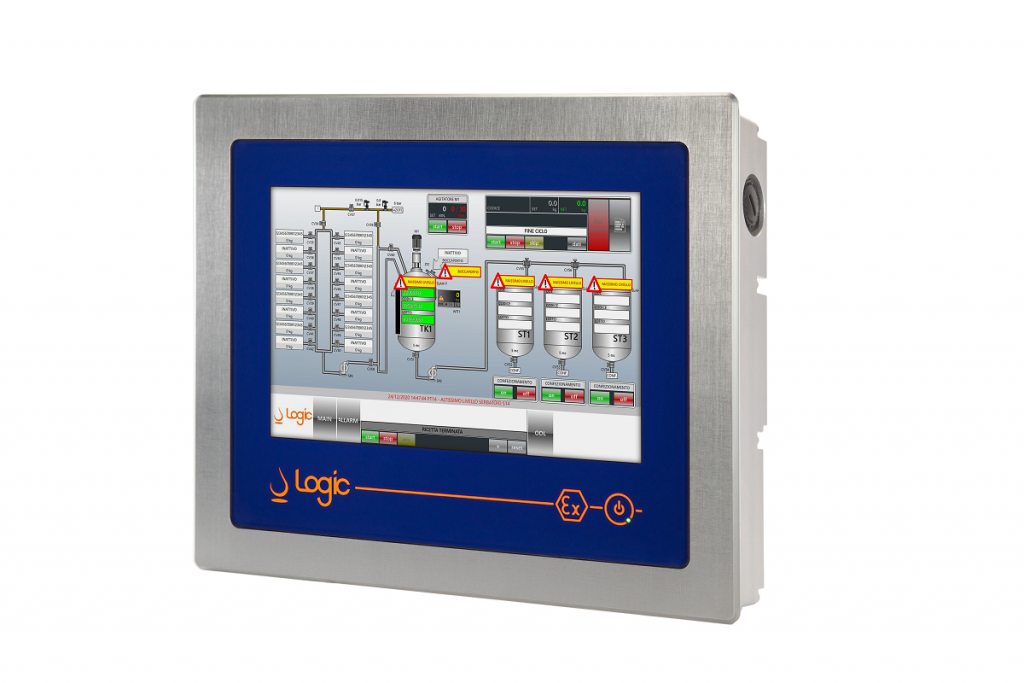

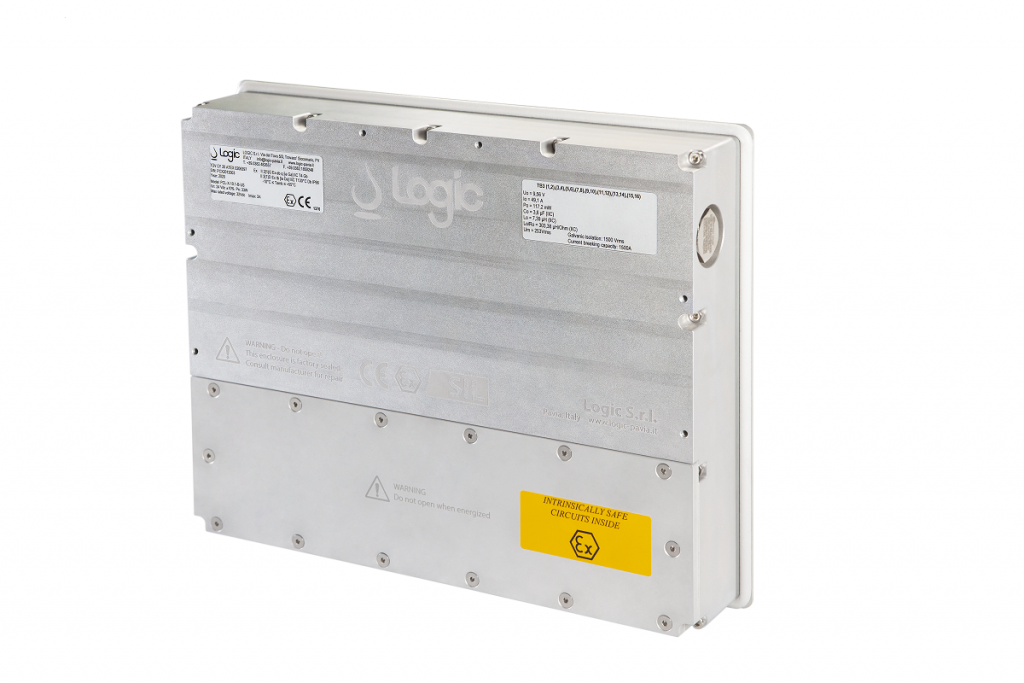

Zone 10.1″ Panel PC

Hexagon series  PCL-X-10.1 are industrial Panel PCs with 10.1″ LCD display, suitable for use in ATEX Zone 1/21

It is equipped with a capacitive touch-screen for user interaction, a capacitive button for equipment power-on with integrated Ex i/Ex e barriers for push buttons and LEDs

It contains the last generation Intel® processors for low energy consumptions and high thermal-dissipation efficiency

PCL-X-10.1 may optionally contain Bluetooth or Wi-fi radio frequency modules

Technical features:

Installation Area:
Ex Zone 1/21

Display:
10.1’’ LCD optically bonded to special cover glass, resolution 1.280×800 px

Touch-screen:
Capacitive and capacitive power-on button with status LED

Processor:
Intel Atom® N3350, RAM: 4 Gb, Hard Disk: 64 Gb

Operative System:
Windows 10® IoT Enterprise LTSC 2019

Communication Interface:
Standard: 1x LAN Gb Ex e, 1 x USB Ex e, 1x RS-485 Ex
Optional on request: 2 x LAN 10/100Mb Ex e, 2 x USB Ex e, Bluetooth/Wi-fi module

Ex i Integrated Active Barriers:
5 x D.I. for standard push buttons (up to SIL3 in dual channel)
2 x D.O. channels for non-Ex LEDs (5V, 15mA – Simple Apparatus)

ATEX Marking:
II 2(1) G Ex eb q [ia Ga] IIC T5…T4 Gb
II 2(1) D Ex tb [ia Da] IIIC T95°C…T130°C Db IP66
TÜV CY 20 ATEX 0206397

IECEx Marking:
Ex eb q [ia Ga] IIC T5…T4 G
Ex tb [ia Da] IIIC T95°C…T130°C Db IP66
IECEx FIDI 21.0005

Mechanical Protection:
IP66 according to EN 60079-0, both front and back.
Suitable for installation inside non-Ex certified enclosures
or inside Ex eb / Ex tb certified enclosures

Materials:
Anodised aluminium and glass (stainless-steel frame on request)

Power Supply:
24Vdc ±10%
