D5000 Series

I.S Isolators

D5000 Series



G.M. Internationals NEW universal mount D5000 series I.S. Isolators provide the most simple and cost effective means of implementing Intrinsic Safety into your Hazardous Area applications.



Wide Functionality

  • Compatible with a wide range of measurement and process control applications.
  • SIL 3 Safety relay contacts rated 4 A / 10 A for direct switching of loads.
  • Three-port galvanic isolation to eliminate noise, ground loop problems.
  • Intrinsic safety without need for high integrity ground.
  • Line fault detection for open or short-circuit wiring.
  • Mounting on DIN-rail w/wo power bus, or on termination panels.
  • Standard or custom integration on termination panels

High Performance

  • High signal transfer accuracy and repeatability.
  • Very low heat dissipation despite high density and functionality.
  • SMD manufacturing to maximise long, reliable life.
  • Absence of electrolytic capacitors—minimum 20 years lifetime.
  • 160 channels per one meter DIN-rail / 6mm per channel
  • Power and fault signals on same bus connectors.
  • Individual module hot swap.

Analogue Input Modules



D5011S  –  1 channel SIL 3 Repeater Power Supply Hart,     D5011S Datasheet

D5011D  –  2 channel SIL 3 Repeater Power Supply Hart,       D5011D Datasheet

D5014S  –  1 channel SIL 3 Repeater Power Supply Hart,     D5014S Datasheet

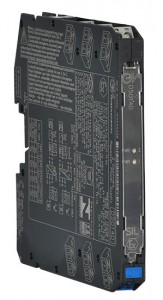

D5014D  –  2 channel SIL 3 Repeater Power Supply Hart,      D5014D Datasheet

D5016DK – 2 Channel I.S. SIL3 2-Wire Acitve HART Tx Current Repeater (Sink Output)      D5016DK Datasheet

D5016DS – 2 Channel I.S. SIL3 2-Wire Acitve HART Tx Current Repeater (Source Output)      D5016DS Datasheet

D5016SK – 1 Channel I.S. SIL3 2-Wire Acitve HART Tx Current Repeater (Sink Output)     D5016SK Datasheet

D5016SS – 1 Channel I.S. SIL3 2-Wire Acitve HART Tx Current Repeater (Source Output)      D5016SS Datasheet

D5212Q   – 4 Channel SIL2 Repeater Power Supply (Modbus)  D5212Q Data Sheet

Analogue Output Modules

D5020S  –  1 channel SIL 3 Powered Isolating Driver Hart,     D5020S Datasheet

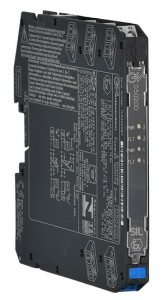

D5020D  –  2 channel SIL 3 Powered Isolating Driver Hart,     D5020D Datasheet

Digital Input Modules



D5030S  –  1 channel, SIL 3 Switch/Proximity Repeater, Relay Output     D5030S Datasheet

D5030D  –  2 channel, SIL 3 Switch/Proximity Repeater, Relay Output     D5030D Datasheet

D5031S  –  1 channel, SIL 3 Switch/Proximity Detector Transistor Out,   D5031S Datasheet

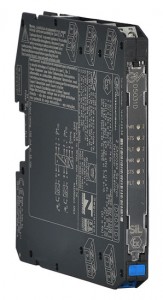

D5031D  –  2 channel, SIL 3 Switch/Proximity Repeater Transistor Out,   D5031D Datasheet

D5032S  –  1 channel, SIL 3 Switch/Proximity Repeater Relay Output (Termination board only)    D5032S Datasheet

D5032D  –  2 channel, SIL 3 Switch/Proximity Repeater Relay Output (Termination board only)   D5032D Datasheet

D5034S  –  1 channel, SIL 3 Switch/Proximity Interface,   D5034S Datasheet

D5034D  –  2 channel, SIL 3 Switch/Proximity Interface,   D5034D Datasheet

D5036S  –  1 channel, SIL 2 Switch/Proximity Interface –  D5036S Datasheet

D5036D  –  2 channel, SIL 2 Switch/Proximity Interface –  D5036D Datasheet

D5037S  –  1 channel, SIL 2 Switch/Proximity Interface –  D5037S Datasheet

D5037D  –  2 channel, SIL 2 Switch/Proximity Interface –  D5037D Datasheet

D5233Q  –  I.S. SIL2 Switch/Proximity Transistor-Out Repeater – D5233Q Datasheet

D5232Q  –  I.S. SIL2 Switch/Proximity Relay-Out Repeater – D5232Q Datasheet

D5231E   –  8 channel, SIL 2 Switch/Proximity Detector Repeater, O.C. Output  D5231E Datasheet

Digital Output Modules



D5040S  –  1 channel, SIL3 Digital Output Driver,   D5040S Datasheet

D5040D  –  2 channel, SIL3 Digital Output Driver,   D5040D Datasheet

D5240T  –  3 channel, SIL3 Digital Output Driver,   D5240T Datasheet

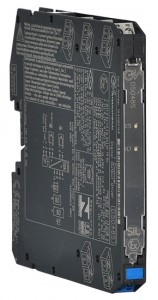

D5048S  –  1 channel, SIL 3 Digital Output Driver,   D5048S Datasheet

D5049S  –  1 channel, SIL 3 Digital Output Driver,   D5049S Datasheet

D5244S  –  1 Channel,  SIL 3 Digital Relay Output, Loop Powered    D5244S Datasheet

D5244D  –  2 Channel,  SIL 3 Digital Relay Output, Loop Powered    D5244D Datasheet

PSD5201  –  1 Channel,  SIL 3 Digital Output Driver   PSD5201 Datasheet

Trip Amplifier – Analogue I/P



D5254S  –  Analogue I/P  Trip O/P –  D5254D Datasheet

Frequency Convertor / Trip Amp Modules

D5060S  –  Prox I/P – Analogue & Trip O/P – Coming Soon

Vibration Input Modules



D5062S  –  SIL 2 Vibration Transducer Interface    D5062S Datasheet

Load Cell / Strain Gauge Input Modules



D5263S  –  Transparent Repeater – D5263S Datasheet

D5264S  –  Analogue and Modbus O/P – D5264S Datasheet

Temperature Input Modules

D5072S  – 1 Ch. SIL 2 Temperature Signal Converter, Multifunction    D5072S Datasheet

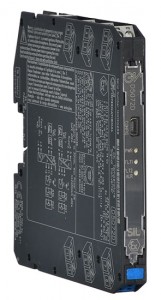

D5072D  – 2 Ch; SIL 2 Temperature Signal Converter, Multifunction    D5072D Datasheet

D5072S-087  –  1 Ch; RTD/Resistance Isolating Repeater   D5072S-087  Datasheet

D5072D-087  –  2 Ch; RTD/Resistance Isolating Repeater   D5072D-087  Datasheet

D5072S-096  –  1 Ch; Thermocouple Isolating Repeater  D5072S-096  Datasheet

D5072D-096  –  2 Ch; Thermocouple Isolating Repeater  D5072D-096  Datasheet

D5273S  –  SIL 2 Temperature Signal Converter, Multifunction, Trip Amplifiers  D5273S Datasheet

D5274S  –   I.S. SIL2 Temp. Trip Amplifier with Zero/Span Trimmers D5274S Data sheet

Power Bus System Distribution & Diagnostic Modules



D5202S  –  SIL 3, 4 A, 24 Vdc Power Distribution and Diagnostic Module  D5202S Datasheet

D5203S  –  Common Alarm Module (SPDT) for D5000/D6000 Series  D5203S Datasheet

Programming Kit

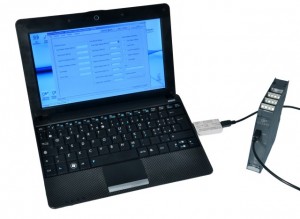

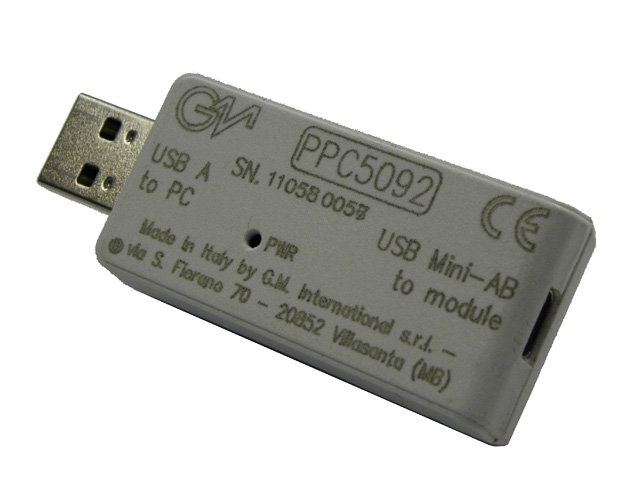

PPC5092  – The PPC5092 is required to easily program D5000 models via PC, using the freely available software SWC5090. The unit is plugged into the PC via USB port and to the D5000 model via a USB cable (included in the package).

Termination Board Mounting

  • Mount up to 8 or 16 modules for up to 64 I/O channels
  • Dual redundant 24VDC power connections with fuses
  • Multipin connector for safe area connections
  • HART multiplexer connections
  • Common fault output terminals
  • Optional design accommodates two relay modules to provide separate relay contacts for power and I/O line fault indication
  • Termination boards can be DIN rail or panel mounted
  • Custom Termination Boards (Honeywell, Trinconex, ABB, Invensys, Yokogawa, Emerson, Hima, Schneider, Siemens, Bailey)

Isolator Enclosure

ENC-001

Our standard unit is a GRP isolator enclosure with clear lid. Fitted with Din Rail and with M20 knockouts.

We are happy to quote for options of larger and smaller versions of these enclosures and to provide quotes for systems fitted with modules and glands etc. For further information please contact us.

SWC5090 Configuration Software for D5000 and D5200 Isolators

    Configurable D5000/D5200 Isolators can be fully managed with this easy to use application.

Ex Loop Safety Parameters Verification

    • This easy to use online web application allows the user to verify IS loops according to the latest standards.
    Contains all updated data on GM Products.
