Primation ATEX Zone 1 Wireless Access Point Router / Bridge

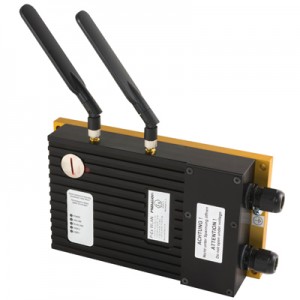

Compact housing maximum performance and flexibility as well as the opportunity to run the device in 2GHz or 5GHz band are only few features of the P-Ex WLAN. A wide range of configuration options allow to use the device as Access Point, Router or Bridge. Running the device in controller based mode enables the use in big or hard to reach wireless installations. Together with the computing power the implemented security features are state of the art and allow a up-to-date data encryption.
P-Ex WLAN
- Direct installation in ATEX Zone 1, 21 and M2
- No additional ex-proof housing required
- Inherent safe antenna connection
- Input voltage 18-28V DC
- IEEE 802.11 a/b/g/n
- Operation in 2GHz or 5GHz band
- Configuration via web interface or configuration software
Device groups:
- Mining (Stainless steel only):
- I M2 Ex eb qb [ib] I
- I M2 Ex e q [ib] I Mb
- Gas:
- II 2G Ex eb qb [ib] IIC T4
- II 2G Ex e q [ib] IIC T4 Gb
- Dust:
- II 2D Ex tb IIIC T135°C
- II 2D Ex tb IIIC T135°C Db

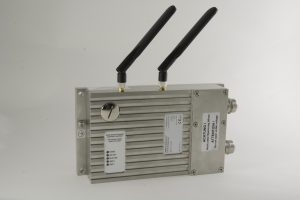

Stainless Steel Housing Version
Regulatory Approval: IBExU14ATEX1114
HMI Elements Wireless Access Points

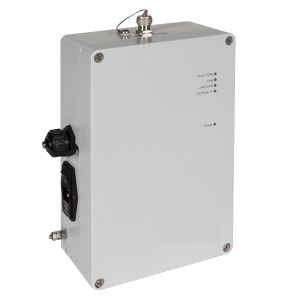

Wireless Access Point 1900-Sa
- Rugged wireless access point
- I.S. antenna output for Zone 1 and 2
- Tri-band wireless Wi-Fi IEEE 802.11a/b/g/h & Super AG
- Up to 108Mbps ( Super AG mode)
- 4/128 bit WEP, WPA-PSK, WPA2-PSK, IEEE 802.1X (RADIUS) authentication
- MAC address filtering, SSID broadcast control
The 1900-Sa Wi-Fi Access Point is designed to be operated within a safe area. The Ex i antenna interface can facilitate an antenna being placed in Zone 1 or 2.
- Lightweight ATEX, IECEx, AEx Zone 1 and Zone 2 Access point
- Intrinsically safe Output allows use of any suitably certified antenna in the hazardous area
- No need for heavy, and expensive Ex d solutions
- Rugged 10/100 RJ45 Ethernet port connector
- Can be used as Access Point, Bridge or repeater
- Fully configurable to meet statutory Wi-Fi requirements worldwide
- Quick and easy set-up
- Inexpensive way to extend your WiFi network into a hazardous area
- Smart-Ex Antenna available
| iSiS1900 : | Main unit installed in the safe area, I.S. output allows antenna in the hazardous area | ||||||
|---|---|---|---|---|---|---|---|
| TYPICAL EX CODE (ANTENNA OUTPUT) |
ATEX and IECEx: Ex II (2) G [Ex ib Gb] IIB USA: Class I, Zone 1 [AEx ib Gb] IIB Canada: Class I, Zone 1 [Ex ib Gb] IIB |
||||||
| POWER REQUIREMENTS | 100 – 240V, 50/60Hz AC, current consumption 0.3A for 230V AC input, 0.6A for 120V AC input | ||||||
| OPERATING TEMPERATURE | 0°C to +50°C (+32°F to +122°F) | ||||||
| STORAGE TEMPERATURE | -20°C to +70°C (-4°F to +158°F) | ||||||
| INGRESS PROTECTION | IP66 | ||||||
| INTERFACE | Standard IEC, switched, filtered and fused (1A) power input Industrial strength, shielded RJ45 Ethernet input Ethernet connection, 10/100 Base Tx. Auto sensing |
||||||
| MAXIMUM TRANSMIT OUTPUT POWER | 20dBm (100mW) | ||||||
| RECEIVER SENSITIVITY |
|
||||||
| RADIO LINK | Tri-band wireless Wi-Fi IEEE 802.11a/b/g/h & Super AG | ||||||
| RADIO DATA RATE | Up to 108Mbps ( Super AG mode) | ||||||
| SECURITY | 4/128 bit WEP, WPA-PSK, WPA2-PSK, IEEE 802.1X (RADIUS) authentication, MAC address filtering, SSID broadcast control | ||||||
| WEIGHT & SIZE | 3.1kg (6.83 lbs) 280(h) x 180(w) x 100(d) mm (11 x 7 x 4 inches) |

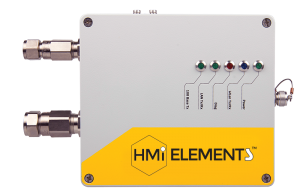

HMi Elemets Wireless Access Point 1901-Z1
- Lightweight ATEX, IECEx, CSA and AEx wireless access point
- Certified* for use in in Class I Zone 1
- Tri-band wireless Wi-Fi IEEE 802.11a/b/g/h & Super AG
- Up to 108Mbps ( Super AG mode)
- 4/128 bit WEP, WPA-PSK, WPA2-PSK, IEEE 802.1X (RADIUS) authentication
- MAC address filtering, SSID broadcast control
The 1901-Z1 Wi-Fi Access Point is designed to be operated within a hazardous area.
- ATEX Zone 1 or 2, IECEx, CSA and AEx certified Class I Zone 1 Wireless Access Point
- No need for heavy, and expensive Ex d solution
- Can be used as Access Point, Bridge or repeater
- Fully configurable to meet statutory Wi-Fi requirements worldwide
- Quick and easy set-up
- Intrinsically safe antenna and Ethernet 10/100 Mbps ports
- Inexpensive way to extend your WiFi network into a hazardous area.
| iSiS1901 : | |||||||
|---|---|---|---|---|---|---|---|
| TYPICAL EX CODE | Ex II (2) G D Ex e mb ib [ib Gb] IIB T4 Gb Ex tb IIIB T135°C Db IP66Class I, Zone 1, AEx e mb ib [ib Gb] IIB T4 Gb Zone 21 Ex tb IIIB T135°C Db IP66 |
||||||
| POWER REQUIREMENTS | 100 – 240V, 50/60Hz AC, current consumption 0.1A for 230V AC input, 0.2A for 120V AC input | ||||||
| OPERATING TEMPERATURE | -40°C to +60°C (-40°F to +140°F) | ||||||
| STORAGE TEMPERATURE | -40°C to +70°C (-40°F to +158°F) | ||||||
| INGRESS PROTECTION | IP66 / NEMA 4X | ||||||
| INTERFACE | IS Ethernet and power via glands IS antenna output |
||||||
| MAXIMUM TRANSMIT OUTPUT POWER | 20dBm (100mW) | ||||||
| RECEIVER SENSITIVITY |
|
||||||
| RADIO LINK | Tri-band wireless Wi-Fi IEEE 802.11a/b/g/h & Super AG | ||||||
| RADIO DATA RATE | Up to 108Mbps ( Super AG mode) | ||||||
| SECURITY | 4/128 bit WEP, WPA-PSK, WPA2-PSK, IEEE 802.1X (RADIUS) authentication, MAC address filtering, SSID broadcast control | ||||||
| WEIGHT & SIZE | 5.4kg / 12lbs 232(h) x 202(w) x 111(d) mm (9.13 x 7.95 x 4.37 inches) |
Extronics Zone 1 & 21 Wireless Access Points
iWAP107 Universal Zone 1 Access Point Enclosure
- ATEX & IECEx Zone 1 Approved
- II 2(1) GD
- Ex d [ia IIC Ga] IIB+H2 T5 Gb
- Ex tb [ia Da] IIIC T100°C Db
The new iWAP107 brings the advantages of MIMO technology to hazardous process areas. This allows the latest MIMO Access Points from market leaders such as Cisco and Aruba to be cost-effectively deployed; significantly improving Wi-Fi performance and reliability.
The iWAP107 also comes with the revolutionary iSOLATE500 RF galvanic isolators, which makes all the antenna points intrinsically safe. This enables high performance, low-cost standard antennas to be used which greatly improves coverage per unit. This feature allows conventional wiring of RF connections and dramatically reduces both install and maintenance times. Designed for use in ATEX and IECEx Zone 1 hazardous areas, the iWAP107 is the perfect system to allow data to be unlocked from process areas such as oil rigs and heavy petrochemical sites.
Extronics Zone 2 & 21 Wireless Access Points
iWAP200 Zone 2 Access Point Enclosure
- II 3 G Ex nA nL IIC T3/T4/T5
- II 2D Ex tD A21 IP66 T80ºC
- Note: ambient temperature depends on whether the enclosure heater or cooler option is fitted
- IP66
The iWAP200 Zone 2 Access Point Enclosure is designed to deploy wireless networks in hazardous areas.
The concept allows installation of equipment from leading WLAN vendors such as Cisco, Meru, Motorola and Firetide. Each type of Access Point or RF transmitting device is rigorously checked and tested by Extronics and our Notified Body to ensure conformity to the ATEX standards and approvals. This means that we can provide an OEM a solution to enable your WLAN network devices to be installed in hazardous areas.
The iWAP 200 is designed for use with one to four standard antennas or iANT200 series of intrinsically safe antennas for optimum coverage on Chemical Plants, Oil Refineries or Oil & Gas Platforms. Optional features include surge arrestors for lightening suppression in outdoor installations and either single and multimode fibre inputs for the Ethernet, enclosure heating or cooling for low/high temperatures and anti-condensation plus the option of plug and socket cable entry instead of cable glands.
Zone 2 WiFi Access Point
iWAP202 Zone 2 Access Point Enclosure
- T5 ‐40°C to +30°C
- T4 ‐40°C to +65°C
- T3/Dust 40°C to +70°C
- ATEX II 3 (1) G Ex nA [ia IIC Ga] IIC T5…T3 Gc
- ATEX II 2 (1) D Ex tb [ia Da] IIIC T82°C Db
The iWAP202 Zone 2 Access Point Enclosure is designed to deploy wireless networks in hazardous areas.
The concept allows installation of equipment from leading WLAN vendors such as Cisco, Meru, Motorola and Firetide. Each type of Access Point or RF transmitting device is rigorously checked and tested by Extronics and our Notified Body to ensure conformity to the ATEX standards and approvals. This means that Extronics can provide an OEM a solution to enable your WLAN network devices to be installed in hazardous areas.
The iWAP202 is designed for use with one to six simple apparatus antennas or iANT2xx antennas for optimum coverage on Chemical Plants, Oil Refineries or Oil & Gas Platforms. Optional features include surge arrestors for lightening suppression in outdoor installations and either single and multimode fibre inputs for the Ethernet, enclosure heating or cooling for low/high temperatures and anti-condensation plus the option of plug and socket cable entry instead of cable glands.
