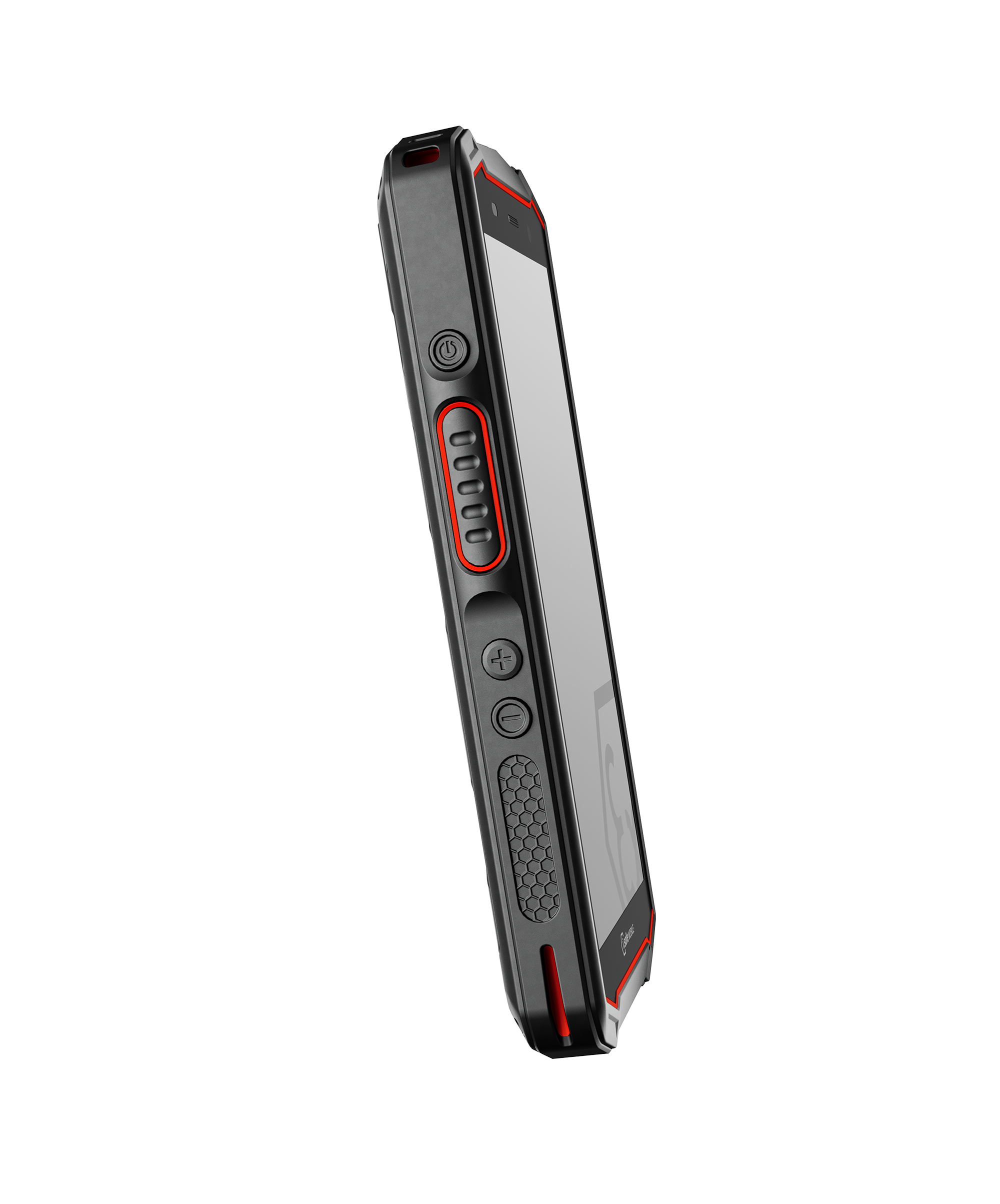

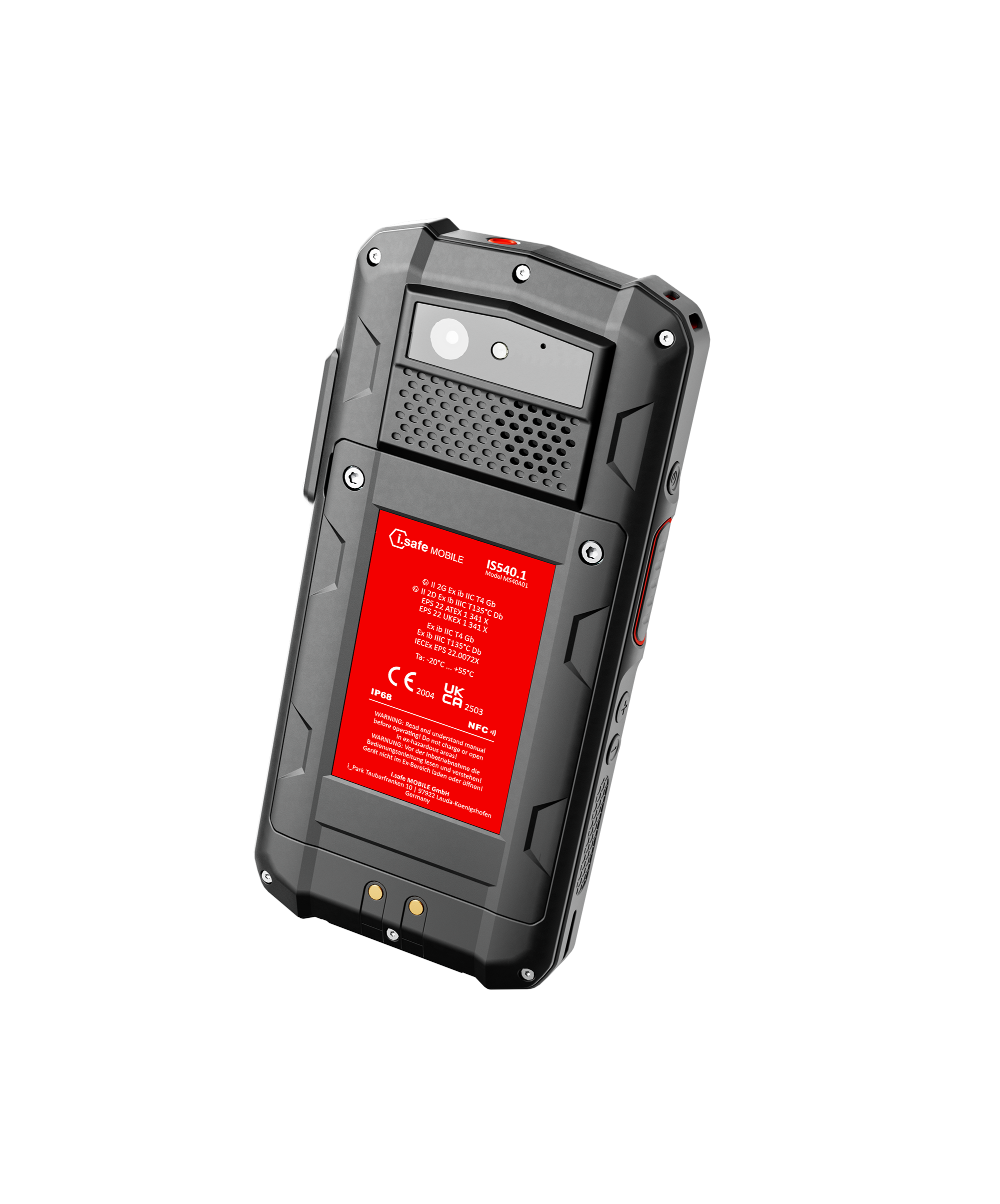

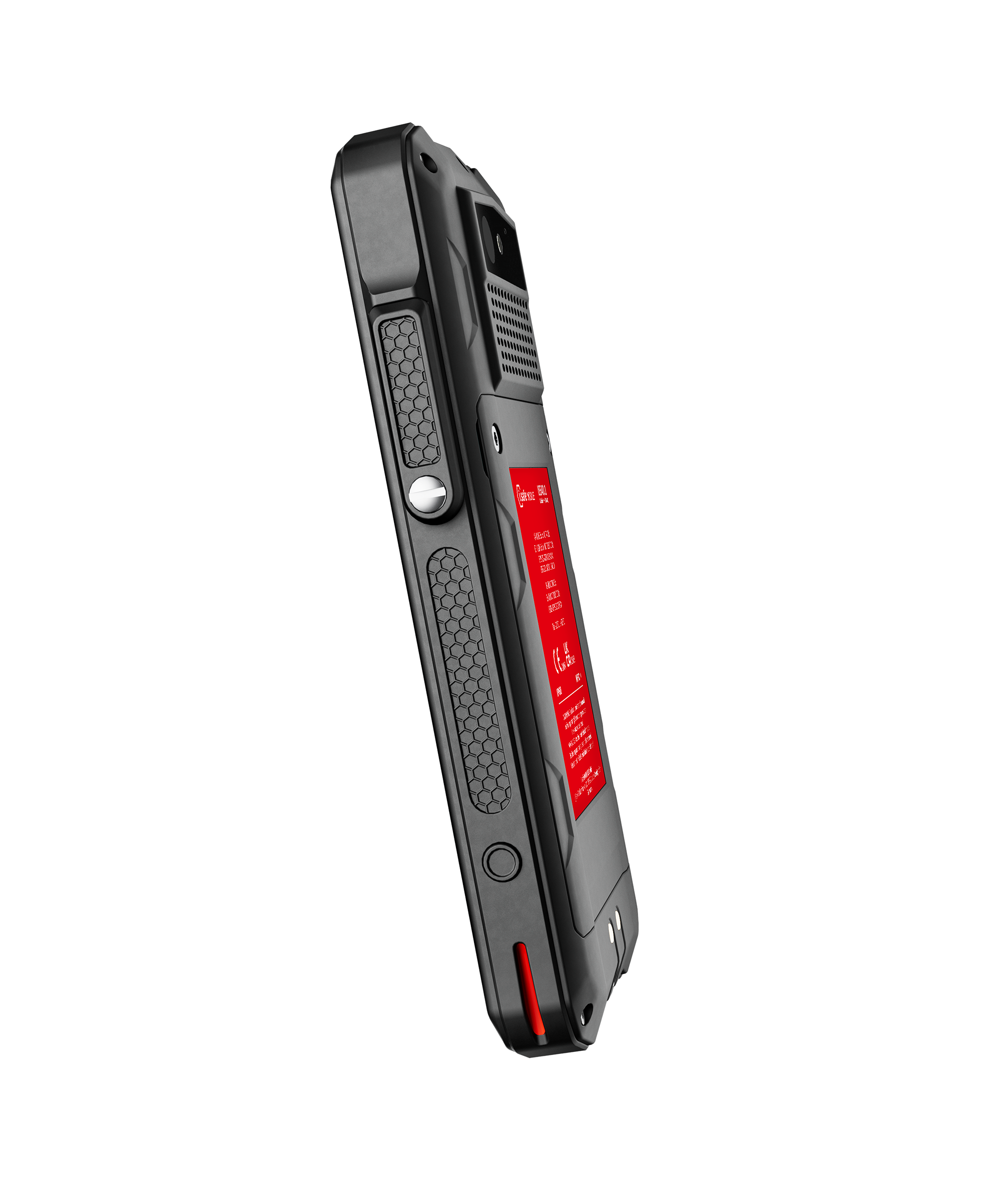

IS540.1

ATEX Zone 1 / 21 Certified Android Smartphone

IS540.1 Zone 1 / 21

The World’s first 5G ATEX Zone 1 smartphone is here thanks to i.safe MOBILE! The 6-inch full HD display on this smartphone offers the highest quality images with a 48MP main camera and wide range frequency bands for industrial applications. The high-quality processor ensures fast data processing for the most demanding industrial applications such as predictive maintenance. In addition, the 16-pin ISM interface enables a secure connection to barcode scanner, audio equipment and many more add-ons.

Key Features

Android^TM 14
World’s First 5G Zone 1 Smartphone
Bluetooth® 5.2
6.0″ (15.24cm) Gorilla Glass® V3 Screen
48MP Rear Camera & 5MP Front Camera
Universal, lateral ISM interface
PTT ready (third party application required)
Usable with gloves
Replaceable 4400 mAh Battery
Programmable side & red key for PTT or lone worker solutions

Multifunctional, lateral ISM interface for a quick and safe connection of additional devices

Amplified loudspeaker

Accelerometer, Gyroscope, Light, Magnetic, Proximity, Pressure sensors

Dual-SIM (Nano-SIM + eSIM)

USB-C, Desktop Charger, Multi Charger

5G Connectivity

Accessories

IS-MC540.1 Multi Charger Set

Multi charger for five devices, each with a second charging slot for spare batteries as well as power cable AU-C7, EU-C7, UK-C7 and US-C7. Size: 595 x 113 x 90 mm (L x W x H). Compatible for IS540.1 and IS540.2

IS-DC540.1 Desktop Charger Set

Desktop charger for the IS540.x devices with a second charging slot for spare battery. Size: 114 x 80 x 54 mm (L x W x H)

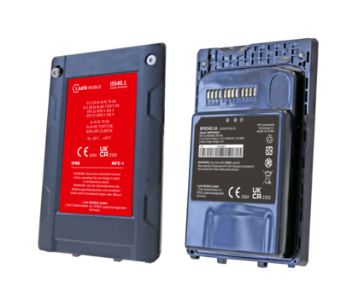

BPIS540.1A Battery

IS540.1 Li-ion battery 4400 mAh, Type BPIS540.1A, Size: 103,5 x 75,0 x 14,0 mm (L x W x H)

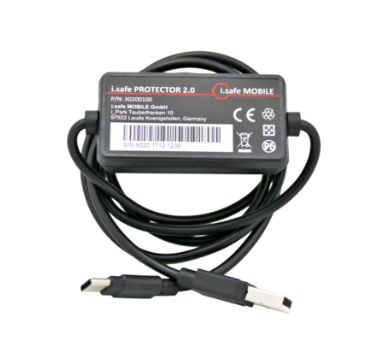

i.safe PROTECTOR 2.0 USB-C Cable

For safe charging of the device via the type USB-C port.

Belt Clip IS540.x

Plastic black, for a quick and safe attachment to the belt.

Leather Case black IS540.x

Made of high quality leather, black. With locking clip for quick attachment to the belt.

Leather Case yellow IS540.x

Made of high quality leather, yellow. With locking clip for quick attachment to the belt.

Leather Belt Loop for Leather Case

For an even more secure attachment of the leather case (e.g. offshore) to a toolbelt.

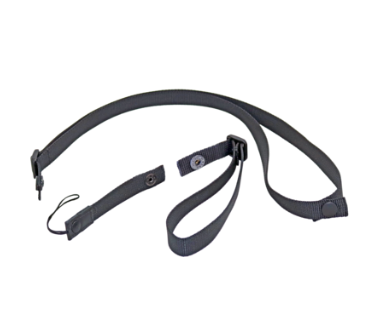

Lanyard/Hand Strap Set

The set consists of the system adapter/fastening loop with push button connection (approx. 16 cm) as well as the tear-resistant, length-adjustable lanyard (adjustable approx. 48 to 66 cm) and the hand strap (adjustable approx. 20 to 25 cm).

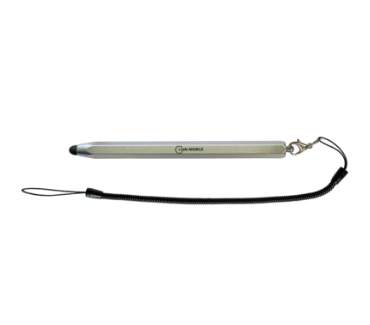

IS-Stylus Set

Stylus for operating touch screens. Made of metal with exchangeable rubber tip and plastic spiral cable. Stylus dimensions: 125 x 10 mm (L x ø); length of spiral cable: flexible from 24 to 70 cm.

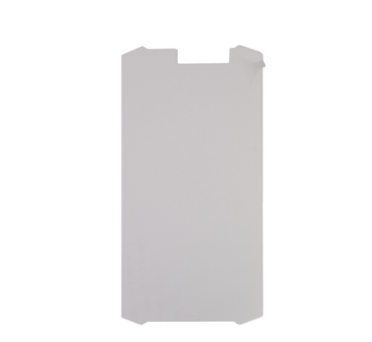

Display Protection Foil IS540.x (10 pcs)

Rugged plastic foil for an extended protection of the display.

Warranty extension

With our comprehensive warranty and service offer, you can protect yourself against additional service costs and receive years of safety and protection directly from the manufacturer. From the very first day, your equipment is protected against accidental damage and normal wear and tear. This reduces your total cost of ownership and benefit from the precision and functionality of our equipment for a long time.

Learn More

PanzerGlass™ IS540.X

PanzerGlass® foil for an extended protection of the display. Suitable for the devices IS540.1, IS540.2, IS540.M1.

Certificates

ATEX

II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db

UKEX

II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db

IECEx

Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db

Operating system	Android™ 14
Processor	Qualcomm QCM6490 Octa Core
Memory	8 GB RAM 128 GB internal memory microSD to 128 GB
Frequencies	2G GSM 850/900/1800/1900 MHz 3G WCDMA B1/2/4/5/8 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28/B29/B30/B66/B71 4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48 5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79
Dimensions	Size: 180,0 x 84,9 x 20,6 mm Weight: 422 g
Display	6,0″ (15,24 cm) Gorilla Glass V3 usable with gloves
Battery	4400 mAh replaceable
Camera	48 MP AF rear 5 MP FF front
Connectivity	Wi-Fi 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot Bluetooth® 5.2 GPS, A-GPS, Glonass, Beidou, Galileo Near Field Communication
Types of protection	IP68 dust-/waterproof MIL-STD 810H Usable from -20 °C to +55 °C
