ATEX Call Points

IS-CP4A-BG/IS-CP4B-BG Break Glass Call Point

1-14-010_IS-CP4-BGThe IS-CP4A-BG and IS-CP4B-BG break glass manual call points are approved for Zones 0, 1, 2, 21 & 22 requiring intrinsically safe equipment for the control of fire and gas alarm systems. Available with and without monitoring resistors all versions are certified to ATEX and IECEx standards.

The IS-CP4 ATEX Call Points range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413) aluminium which is phosphated and powder coated.



Data Sheet











IS-CP4A-PT/IS-CP4B-PT Tool Reset Call Point

1-14-030_IS-CP4-PTThe IS-CP4A-PT and IS-CP4B-PT push button, tool resettable, manual call points are approved for Zones 0, 1, 2, 21 & 22 requiring intrinsically safe equipment for the control of fire and gas alarm systems. Available with and without monitoring resistors all versions are certified to ATEX and IECEx standards.

The push button mechanism is protected by a spring loaded cover therefore the switch requires a two-action activation. The push button is user resettable via the use of the special key supplied with the unit. The IS-CP4 range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413) aluminium which is phosphated and powder coated.



Data Sheet







IS-CP4A-PB/IS-CP4B-PB Push Button Call Point

1-14-020_IS-CP4-PB-

The IS-CP4A-PB and IS-CP4B-PB push button manual call points are approved for Zones 0, 1, 2, 21 & 22 requiring intrinsically safe equipment for the control of fire and gas alarm systems. Available with and without monitoring resistors all versions are certified to ATEX and IECEx standards.

The push button mechanism is protected by a spring loaded cover therefore the switch requires a two-action activation. The product is user resettable by rotating the push button.
The IS-CP4 range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413) aluminium which is phosphated and powder coated.



Data Sheet











Exd Manual Call Points

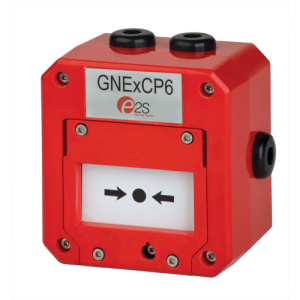

GNExCP6A-BG Break Glass Call Point

1-24-010_GNExCP6A-BG-R

The GNExCP6A manual call points are available as break glass, push button or tool reset versions. They are approved for Zone 1, 2, 21 and 22 hazardous areas for the control of fire and gas alarm systems. Available with either single or double pole change over switches. All versions are certified to ATEX and IECEx standards.



Data Sheet





Specification

GNExCP6A: II 2G Ex e d IIC T6 Gb
II 2D Ex t IIIC T60°C Db
IP66
Ambient: Ta = -40°C to +55°C [-40°to +131°F]
Ingress protection: IP66
Housing material: GRP – glass reinforced polyester
(UV stable)
Colour: RAL3000 Red (others available on request)
Cable entries: 2 x M20 clearance top and
1 x M20 clearance side.
Back box can be rotated to give
2 x bottom and 1 x side entries.
Stopping plugs: 2 x Ex e nylon plugs as standard
Brass and stainless steel plugs optional
Terminals: 6 x 4.0mm² cables.
Test: Test key facility
Weight: 1.2Kg/2.64Ibs
Note:
For applications requiring monitoring resistors, diodes or inidcator LED’s please see the GNExCP6B-BG version.
Data sheet reference: 1.3.07.

Part Codes

Type: Version: Switch: Type: Stopping plug Type: Lift Flap: Duty Label: Body Colour:
GNExCP6A BG S
D
N
B
S
N
L
N
P
S
RD
BL
GN
YW
RW
YB
BK
Type: BG:
Break Glass
S: SPCO
D: DPCO
N: Nylon
B: Brass
S: St/St
N: No flap
L: Lift flap
N: Not required RD: Red
P: Metalisedpolyester (self adhesive)
S: St/St
BL: Blue
GN: Green
YW: Yellow
RW: Red/White
YB: Yellow/Black
BK: Black
e.g: GNExCP6A-BG-S-N-N-N-RD : GNExCP6A call point – Break Glass type – Single Pole switch – Nylon stopping plugs – No LIft flap – No duty label required – Red colour housing
