14PMx-3

ATEX Certified iPhone® 14 Pro Max Case

14PMx-3

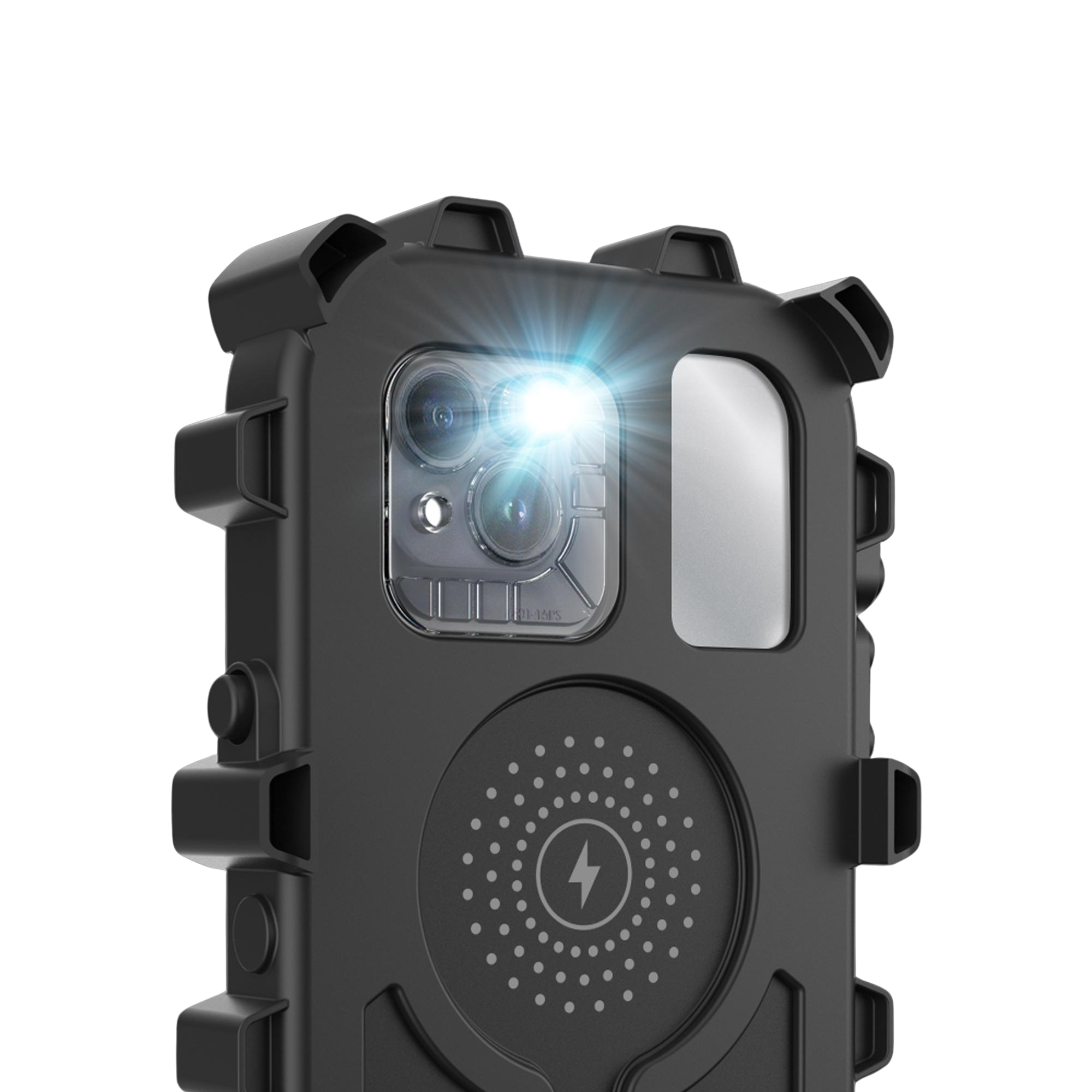

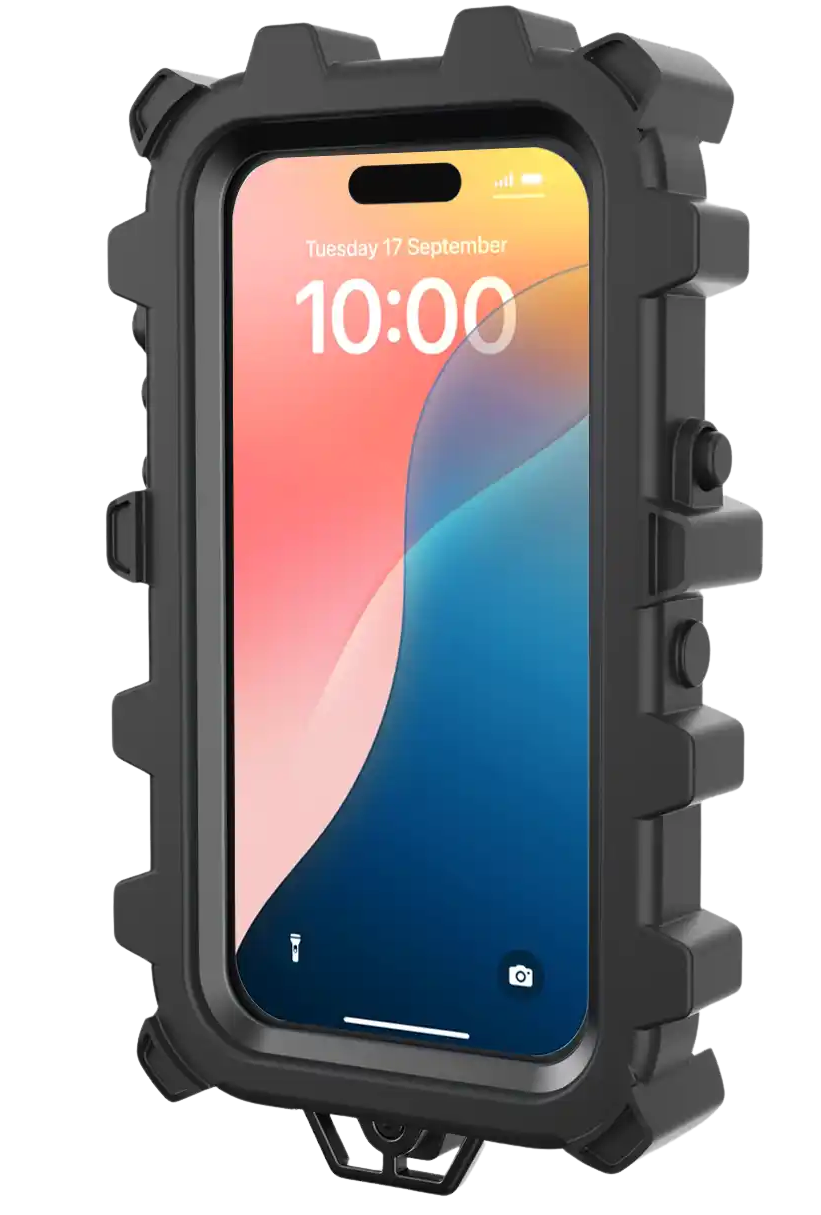

The XARMOR™ 14PMx-3 is a patent-pending ATEX Certified case that allows safe use of the iPhone® 14 Pro Max in Zone 2/22 hazardous environments. Constructed from performance polymers rather than metal, it prevents RF and wireless signal loss while enabling full MagSafe wireless charging support.

Purpose-built for the Pro Max’s triple camera and large screen, this case combines advanced safety certification with uncompromised smartphone functionality — making it ideal for industrial users who need reliability, compliance, and performance in the field.









Key Features

  • Pro Max Ready – Tailored for the iPhone® 14 Pro Max’s triple camera and display.

  • Reliable Connectivity – Non-metallic polymer build ensures uninterrupted RF and wireless signal strength.

  • Wireless Charging Support – Full MagSafe compatibility for convenient charging.

  • Clear Flash Photography – Flash tunnel design ensures images are captured without glare or distortion.

  • Uncompromised Audio – Embedded audio skins maintain full use of microphone and speaker ports.

  • Rugged & Compliant – Twin redundant lanyard points withstand 4m anchored drop tests and meet NS9611 Norwegian Offshore Standards.

  • Flexible Deployment – Easy to install in the field or via Factory Installation Service.

Certificates

ATEX

II 3 G Ex nR IIC T6 Gc Tamb -20°C to +50°C

II 3 D Ex tc IIIC T85°C Dc Tamb -20°C to +50°C







Technical Specifications

Safety & Mechanical
ATEX II 3 G Ex nR IIC T6 Gc Tamb -20°C to +50°C
II 3 D Ex tc IIIC T85°C Dc Tamb -20°C to +50°C
Ingress Protection (IP) 54
Dimensions TBA
Weight TBA
Lanyard points Yes (twin)
Imaging & Audio
Camera support Yes
Flash compatible Yes
Audio compatible Yes
Power & Data
Battery charging Wireless via MAGSAFE
Data Wireless only*
What’s Included
14PMx-3 ATEX Certified iPhone® 14 ProMax case
Transport pouch
Wrist Strap
Restricted breathing adaptor kit
Manuals
