Zone 1 PC

1301-Z1

A Slim-Line ATEX, IECEx, AEx Zone 1 HMI  (Available Q1 2019)

The latest addition to HMI Elements’s range of hazardous area HMIs is a slim and lightweight PC, with a super high-bright 19”, 1000 nit multi-touch glove-friendly touchscreen. As you would expect from HMI Elements it comes certified for use in Class I Zone 2 areas with Ethernet and WiFi as standard and a choice of operating voltages.

Features:

  • Glove-friendly Projective Capacitive Touchscreen (PCT) with multi-touch
  • 19″ 1000 nit display
  • Wide -40°C to +60°C (-40°F to +140°F) operating temperature range as standard
  • Thin: 5″ profile. Lightweight: 21.5kg / 47.3lbs
  • VESA, yoke and panel mount options
  • Choice of operating voltages
  • Remote telemetry
  • Built-in diagnostics
  • Clean screen mode
  • Ethernet 10/100/1000 Mbit/s and Wi-Fi as standard
  • Ingress protected to IP66/NEMA 4X
  • Shock in accordance with BS EN60068-2-27:2009
  • Vibration in accordance with BS EN60068-2-6:2008
  • Windows 10 Enterprise LTSB, Windows 7 Professional Operating System
  • Designed for field maintainability



1301-Z1 : i7
PRODUCT TYPE PC Workstation
MODEL NO 1301-Z1
TYPICAL EX CODE II (2) GD Ex e d mb ib [ib] IIC T4 Gb(Gb)
Ex tb IIIB T135°C Dc IP66
Class1, Zone 1, AEx e d mb ib [ib] IIC T4 Gb (Gb)
Zone 21 Ex tb IIIB T135°C Db IP66
DISPLAY SIZE 19″
DISPLAY TYPE Sunlight readable high brightness panel
IR filtering and anti-glare coating.
RESOLUTION SXGA; 1280 x 1024, wide viewing angle,  24 bit colour
PROCESSOR OPTIONS Core i7 6th/7th Generation
MEMORY OPTIONS 16GB DDR / 32GB DDR4
OPERATING SYSTEM Windows 10 Enterprise LTSB, Windows 7 Professional 64 bit
INGRESS PROTECTION IP66 / NEMA4 and NEMA 4X
OPERATING TEMPERATURE -40°C to +60°C
STORAGE TEMP -40°C to +85°C (-40°F to +185°F)
WEIGHT 47.3Ibs / 21.5kg
MAX DIMENSIONS 16.9″ x 16.1″ x 5.9″ / 430mm x 410mm x 150mm
MOUNTING OPTIONS VESA, Yoke, Panel
COMMUNICATION OPTIONS Wi-Fi connectivity
Bluetooth connectivity
Fibre optic connectivity
Remote interrogation of on-board diagnostics
Built-in Camera1301-Z1 Data Sheet
1301-Z1 Data Sheet




800-Z1 & 900-Z1

The HMI-Elements range of industrial PCs for use in the hazardous area consists of the 800Z1 & 900-Z1 with their Pentium M processors. With no requirement for purging, all HMI-Elements computer models are ATEX certified for use as HMIs in Zones 1 and 2.

Features

  • Glove friendly optional touch screen (800 & 900)
  • Integrated keyboard/mouse and/or external keyboard
  • High bright and transflective screen options (800 & 900)
  • Simple to install
  • Will run with any PC operating system (450 CE only)
  • Configurable with fibre optic, Cat5, and/or WiFi
  • 800 & 900 work to -20°C as standard
  • Available with a range of mount and stand configurations Ex d – ease of field maintenance (with appropriate training)
  • Customisable bulkhead connection configuration
  • Optional bulkhead mounted Ex junction boxes
  • Wide range of interface and keyboard options available

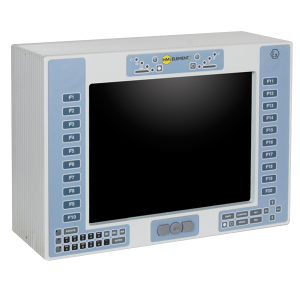

PC WORKSTATIONS: 800-Z1 900-Z1
TYPICAL EX CODE II 2 G Ex d ib [ib] IIB Gb T4
DISPLAY SIZE 15″ 19″
DISPLAY TYPE LCD
RESOLUTION XGA 1024×768 SXGA 1280×1024
PROCESSOR Intel 5th Generation (Broadwell) Core™ i7 5650U 2.2GHz COM Express form factor SBC
HDD / SSD / FLASH Rugged 80GB, Rugged 100GB, 64GB SSD, 128GB SSD, 64 GB Flash
RAM 8GB DDR3l
ONBOARD TPM Fully compliant to the Trusted Computer Group (TCG) Trusted Platform Module (TPM) Version 1.2 specification
OPERATING SYSTEM Windows 10 Enterprise LTSB or Windows 7 Professional
COMMS OPTIONS WiFi  /  Ethernet (10/100 Mbits/s)  /  Fibre Optic
KEYBOARD / MOUSE / OTHER Integrated membrane mouse. Integrated keypads. External Exi PS/2 interface
OPERATING TEMP -20°C to +50°C (-4°F to +122°F)
STORAGE TEMP -25°C to +55°C (-13°F to +131°F)
WEIGHT 32kg / 68lbs 44kg / 88lbs
DIMENSIONS 465 x 337 x 160 mm 521 x 390 x 165 mm
OPTIONAL EXTRAS Optional Rota DE2 USB connection system and/or Smart-Ex ATEX keyboard





Zone 1 PC Workstations Brochure

Exloc – Smart-Ex Flyer
