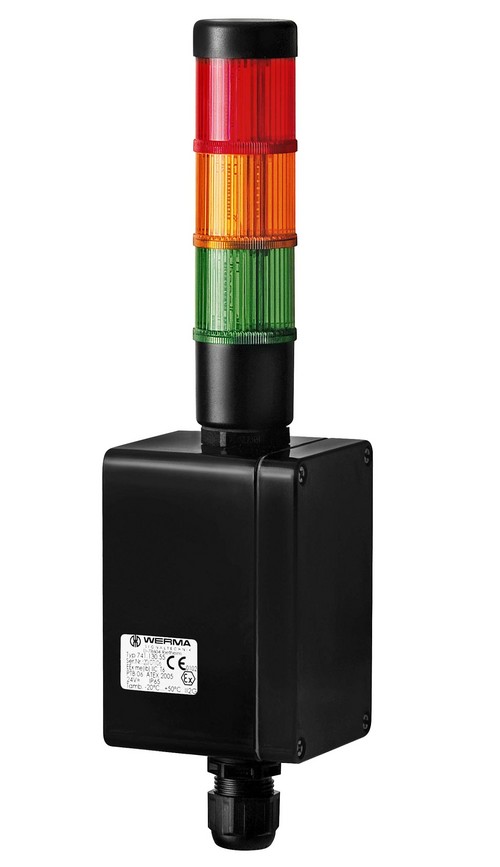

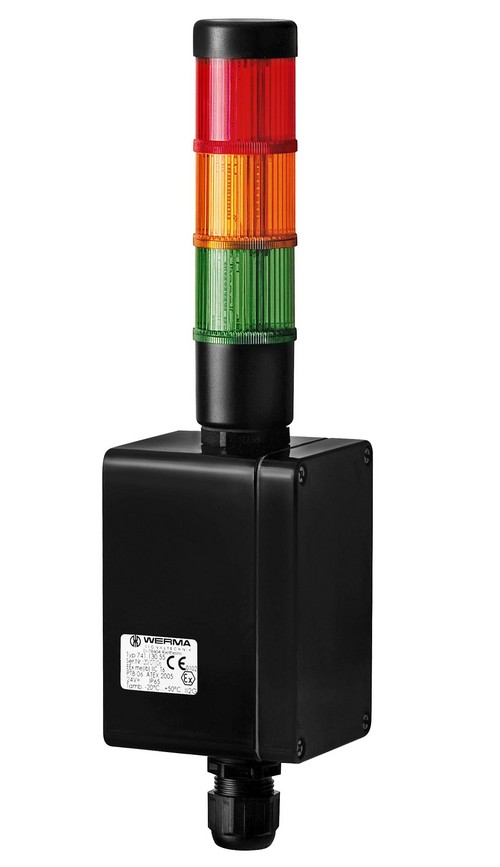

The Ex LED Signal Tower 741 is suitable for Zone 1 and Zone 2 gas applications.

It is a cost effective solution that doesn’t rely on any additional external barriers and can be purchased with 2 or 3 beacons in the tower, making it scaleable.

  • Connection: screw connection max. 2.5 mm² single wire
  • Fixing: bracket mounting
  • Colour: any 2 or 3 from red/yellow/green
  • Service life: max. 100.000 h
  • Protection rating: IP65
  • Voltage: 24V DC
  • Voltage type: DC
  • Current consumption: max. 90 mA
  • Temperature range: -20°C…+50°C
  • Housing material: PES
  • Type of protection: II2G Ex e mb [ib] IIC T6 Gb
  • Signal effect: LED Permanent
  • Diameter: 38 mm
  • Width: 76 mm
  • Height: 291 mm (3 beacon tower)
  • Depth: 75 mm

See the link on our website at for further details:
