IS540.2

ATEX Zone 2 / 22 Certified Android Smartphone

PHO_PRO_BAC_PPO_IS540.2_back__SALL__AIN__V1

IS540.2 Zone 2 / 22

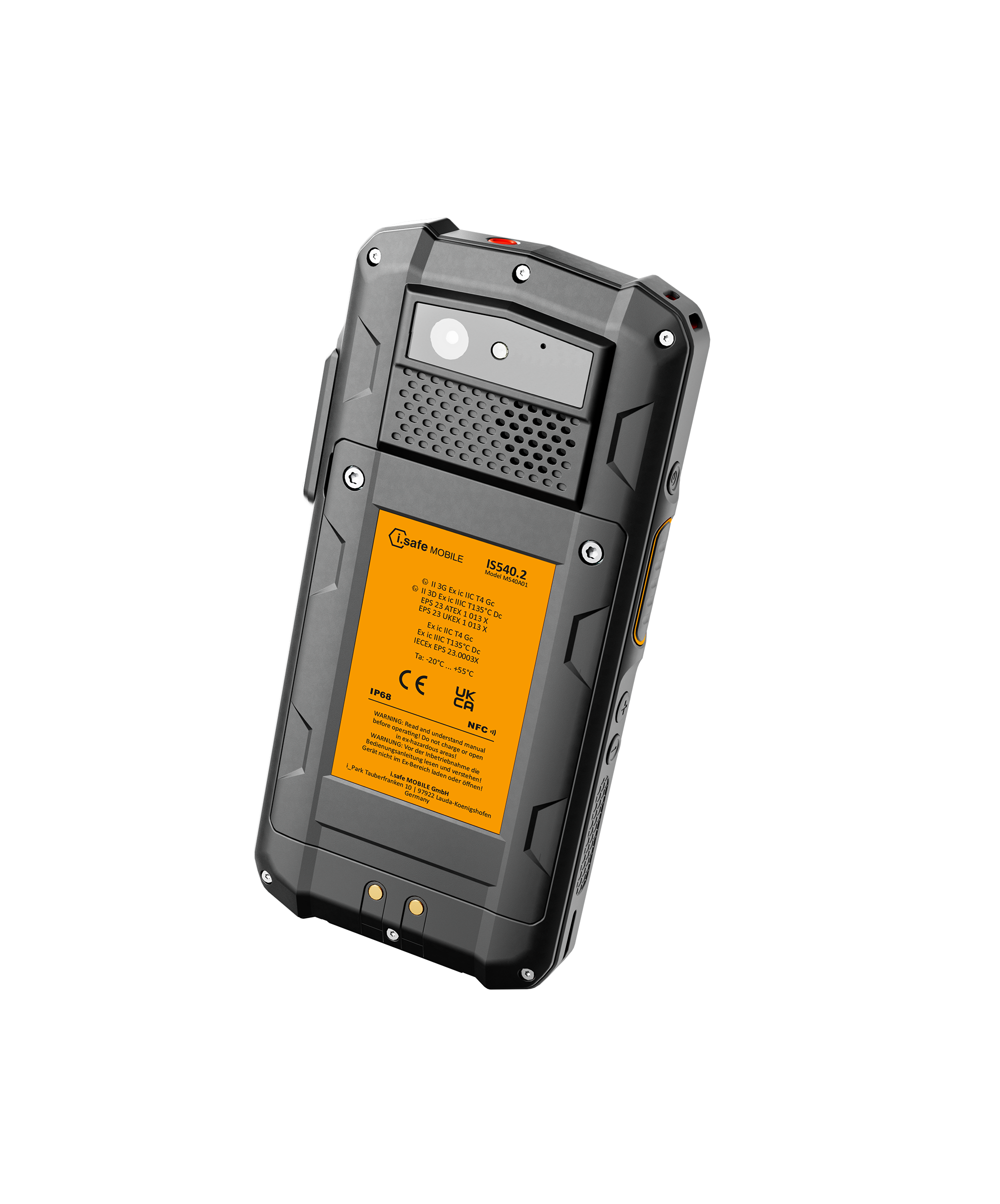

The i.safe MOBILE IS540.2 is an ATEX and IECEx certified 5G smartphone designed for use in Zone 2 / 22 hazardous areas. Running Android 14 on a Qualcomm QCM6490 octa-core processor, it combines the familiarity and application support of a modern Android smartphone with the certification and rugged construction required for industrial environments.

Its 6-inch Full HD display provides a practical working area for mobile applications, documents and field data, while the 48 MP rear camera supports detailed image capture during inspections, maintenance and other site activities. 5G, Wi-Fi 6, Bluetooth 5.2, NFC and satellite positioning provide a broad range of connectivity options for organisations using mobile applications and connected workflows in hazardous areas.

The IS540.2 is also designed around everyday industrial use. Its 4400 mAh battery is replaceable, allowing batteries to be exchanged rather than taking the device out of service for charging. Programmable side and red keys can be assigned to functions such as Push-to-Talk, Push-to-Talk over Cellular, lone worker applications or SOS functions, while the 16-pin ISM interface provides a secure connection for approved accessories.

For organisations looking to extend existing Android-based workflows into Zone 2 / 22 areas, the IS540.2 provides a capable platform for communication, inspections, maintenance applications, data capture and other mobile industrial tasks.

Key Features

Android^TM 14
5G Enabled
Bluetooth® 5.2
48MP Rear Camera
Replaceable 4400 mAh battery
Programmable side key (e.g. for PoC/PTT)
Programmable red key (e.g. for lone worker protection/SOS)

Need a Zone 1 / 21 Version?

View the ATEX Zone 1 / 21 IS540.1

Multifunctional, lateral ISM interface for a quick and safe connection of additional devices

Amplified loudspeaker

Accelerometer, Gyroscope, Light, Magnetic, Proximity, Pressure sensors

Dual-SIM (Nano-SIM + eSIM)

USB-C, Desktop Charger, Multi Charger

5G Connectivity

Accessories

BPIS540.2A Battery

IS540.2 Li-ion battery 4400 mAh, Type BPIS540.2A, Size: 105 x 75,0 x 14,0 mm (L x W x H)

IS-DC540.1 Desktop Charger Set

Desktop charger for the IS540.x devices with a second charging slot for spare battery. Size: 114 x 80 x 54 mm (L x W x H)

IS-MC540.1 Multi Charger Set

Multi charger for five devices, each with a second charging slot for spare batteries as well as power cable AU-C7, EU-C7, UK-C7 and US-C7. Size: 595 x 113 x 90 mm (L x W x H). Compatible for IS540.1 and IS540.2

i.safe PROTECTOR 2.0 USB-C Cable

For safe charging of the device via the type USB-C port.

PHO_PRO_FRO_PPO_IS-RSM3A-RG-front_NTR__SALL__AIN__V1

IS-RSM3A.1 Remote Speaker Microphone

The wired Remote Speaker Microphone is the ideal addition to PoC and lone worker protection applications for Zone 1/21. The lightweight device has an ergonomic design and is easy to operate even when wearing gloves. Two built-in noise-cancelling microphones reduce background noise, ensuring clear voice transmission. In conjunction with the DSP controller (Digital Signal Processor), unwanted noise is minimised in real time, enabling clear communication in particularly noisy working environments.

PHO_PRO_FRO_PPO_IS-RSM3B-1-front_NTR__SALL__AIN__V1

IS-RSM3B.1 Remote Speaker Microphone

The Bluetooth® Remote Speaker Microphone is the ideal addition to PoC and lone worker protection applications for Zone 1/21. The lightweight device has an ergonomic design and is easy to operate even when wearing gloves. Two built-in noise-cancelling microphones reduce background noise, ensuring clear voice transmission. In conjunction with the DSP controller (Digital Signal Processor), unwanted noise is minimised in real time, enabling clear communication in particularly noisy working environments.

IS-HDHS1B.1 Headset Set (Neckband)

Comfortable, noise-insulating headset with outstanding features such as a pleasant wearing comfort thanks to the soft ear pads, first-class audio components, approx. 27 dB sound attenuation and a microphone with excellent noise cancellation. The robust design is also suitable for difficult environments and the textile headband allows helmets and bump caps to be worn.

IS-HDHS1C.1 Headset Set (Helm Mount)

Comfortable, noise-insulating headset with outstanding features such as a comfortable fit thanks to the soft ear pads, first-class audio components, approx. 27 dB sound attenuation and a microphone with excellent noise cancellation. The helmet attachment can be selected depending on the helmet type.

PHO_PRO_COMP_IS-PTTBxA.1_ZUB__SALL__AIN__V1

IS-PTTB1A.1 PTT Button Set (16-pin)

The housing of the PTT button is made of impact-resistant, fibreglass-reinforced plastic and is ideally suited for robust use. Thanks to the splash water protection, it can also be used in a damp environment or in daily use in outdoor areas without any worries. There is a fastening clip on the back for attachment. The large, fluorescent transmit button allows safe operation even in hectic situations and the additional mountable protective ring prevents the button from being pressed accidentally.

Sensear SM1P Ex Helmet Mount

The SM1P Ex Series headphones are a state-of-the-art hearing protection and communication system (i.e. they protect against harmful noise), allowing you to stay aware of your surroundings whilst remaining in constant contact with your team via short-range technology, as well as via two-way radios or mobile phones using Bluetooth® or a wired connection.

Learn More

Sensear SM1P Ex Headband

Learn More

Sensear SM1P Ex Behind the Neck

Learn More

IS-HS2A.1 Headset Set

16-pin Headset, suitable for all 16 ISM interfaces.

Acoustic Tube IS-HSx.x

Acoustic Tube for replacement when the headset is worn out. Suitable for IS-HS1.1 (13-pin), IS-HS2A.1 (16-pin), and IS-HS3A.1 (8-pin) Packaging unit 10 pieces.

Belt Clip IS540.x

Plastic black, for a quick and safe attachment to the belt.

Leather Case black IS540.x

Made of high quality leather, black. With locking clip for quick attachment to the belt.

Leather Case yellow IS540.x

Made of high quality leather, yellow. With locking clip for quick attachment to the belt.

PHO_PRO_COMP_Universaltasche_IS540.x_Composing__SALL__AIN__V1

Leather Case Universal IS540.x

Made of high quality leather, black with a durable Cordura lining. The leather bag has a magnetic closure. With locking clip for quick attachment to the belt. Suitable for the devices IS540.x and IS885.x.

Leather Belt Loop for Leather Case

For an even more secure attachment of the leather case (e.g. offshore) to a toolbelt.

Lanyard/Hand Strap Set

The set consists of the system adapter/fastening loop with push button connection (approx. 16 cm) as well as the tear-resistant, length-adjustable lanyard (adjustable approx. 48 to 66 cm) and the hand strap (adjustable approx. 20 to 25 cm).

IS-Stylus Set

Stylus for operating touch screens. Made of metal with exchangeable rubber tip and plastic spiral cable. Stylus dimensions: 125 x 10 mm (L x ø); length of spiral cable: flexible from 24 to 70 cm.

Display Protection Foil IS540.x (10 pcs)

Rugged plastic foil for an extended protection of the display.

Warranty extension

With our comprehensive warranty and service offer, you can protect yourself against additional service costs and receive years of safety and protection directly from the manufacturer. From the very first day, your equipment is protected against accidental damage and normal wear and tear. This reduces your total cost of ownership and benefit from the precision and functionality of our equipment for a long time.

Learn More

PanzerGlass™ IS540.X

PanzerGlass® foil for an extended protection of the display. Suitable for the devices IS540.1, IS540.2, IS540.M1.

Certificates

ATEX

II 3G Ex ic IIC T4 Gc
II 3D Ex ic IIIC T135°C Dc

UKEX

II 3G Ex ic IIC T4 Gc
II 3D Ex ic IIIC T135°C Dc

IECEx

Ex ic IIC T4 Gc
Ex ic IIIC T135°C Dc

Operating system	Android™ 14
Processor	Qualcomm QCM6490 Octa Core
Memory	8 GB RAM 128 GB internal memory microSD to 128 GB
Frequencies	2G GSM 850/900/1800/1900 MHz 3G WCDMA B1/2/4/5/8 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28/B29/B30/B66/B71 4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48 5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79
Dimensions	Size: 180,0 x 84,9 x 20,6 mm Weight: 422,0 g
Display	6,0" (15,24 cm) Gorilla Glass V3 usable with gloves
Battery	4400 mAh replaceable
Camera	48 MP AF rear 5 MP FF front
Connectivity	Wi-Fi 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot Bluetooth® 5.2 GPS, A-GPS, Glonass, Beidou, Galileo Near Field Communication
Types of protection	IP68 dust-/waterproof MIL-STD 810H Usable from -20 °C to +55 °C
